Automatic Two-Sided Terminal Crimping and One-Sided Housing Insertion Machine

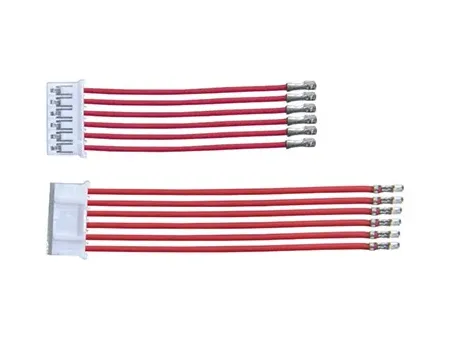

Our 2-sided crimping & 1-sided housing insertion solution supports two sides crimping and single-side housing insertion, making it ideal for producing complex wire harnesses. Each wire can be individually configured for length, providing a practical approach to handling diverse cable requirements. With a crimping capacity of 2,000 crimps per hour, this wire terminating machine ensures efficiency and consistency in processing 18AWG to 28AWG wires.
- Approx. 2,000 crimps per hour
| General | Model | |
|---|---|---|
| Dimensions (L×W×H) | 1700×1600×1800mm | |
| Weight | Approx. 900kg (without wire pay-off and vibrating plate) | |
| Power Supply | AC220V 50Hz | |
| Rated Current | 15A | |
| Power | 3kW | |
| Air Pressure | 0.4-0.6Mpa (the air must be filtered and dried) | |
| Space Requirement | 2.5×2m | |
| Crimping Force | 2T | |
| Functions | Crimping Capacity | 2000 crimps/hr (depending on terminal housing and wire) |
| Wire Processing | Wire cutting, One-sided full stripping, Two-sided full stripping, Two-sided half stripping, One-sided crimping, Two-sided crimping, One-sided crimping one-sided housing insertion | |
| High-precision crimping, stripping and tinning by using ball screw mechanism | ||
| Control System | LCD display, single-chip microcontroller | |
| Detection Devices | Crimp test, wire shortage detection, air pressure test, paper winding inspection | |
| Auxiliary Equipment | Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank | |
| Operation Control | Wire feeding, cutting, stripping and movement are controlled via touch screen | |
| Optional | Pressure Measuring Device | Used to measure terminal crimping pressure |
| Application Range | Cutting Length | 35-1000mm (customizable) |
| Stripping Length | Front:0.5-15mm, Rear: 0.5-7mm | |
| Wire & Cable Type | Electric wire, high temperature cable, Teflon insulated cable (AWG28#-AWG18#) |
-
Intelligent robotic clamping provides stable wire alignment and precise feeding, ensuring every wire maintains its configured length and achieves consistent results.
-
Tailored to process a wide range of wires, from PVC and silicone to Teflon-coated and halogen-free types, it handles 18AWG to 28AWG wire specifications easily.
-
A built-in error detection system displays real-time alerts on an intuitive touch screen, allowing operators to quickly identify and address issues without disrupting production.
