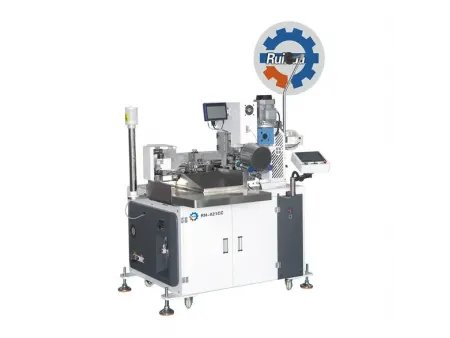

Automatic Two-Sided Terminal Crimping and One-Sided Seal Insertion Machine
This model of wire terminating machine integrates two-sided crimping and single-sided seal insertion, making it an efficient choice for processing 18AWG-28AWG wires. It is compatible with materials such as PVC, silicone, Teflon, and halogen-free cables, offering flexibility for diverse applications, including high-temperature and moisture-resistant wiring. With a processing capacity of 2,200 wires per hour at 100mm lengths, our 2-sided crimping & 1-sided seal insertion ensures consistent quality and high wire and cable production efficiency.
- 2,200 wires per hour at 100mm length
| General | Model | |
|---|---|---|
| Dimensions (L×W×H) | 1700×920×1580mm | |
| Weight | 600kg | |
| Power Supply | AC220V 50Hz | |
| Rated Current | 20A | |
| Power | 4kW | |
| Air Pressure | 0.4-0.6Mpa (the air must be filtered and dried) | |
| Space Requirement | 1×1.8m | |
| Crimping Force | 2T | |
| Functions | Crimping Capacity | 2200 wires/hr at 100mm length (depending on the wire length) |

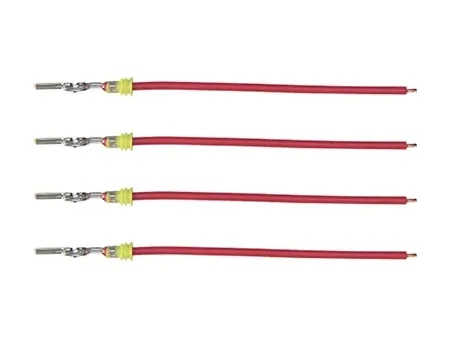

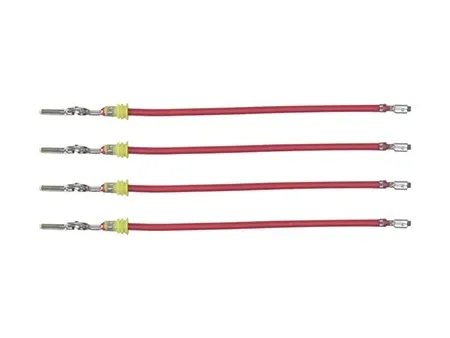

| Wire Processing | Wire cutting, One-sided stripping, Two-sided stripping One-sided crimping, Two-sided crimping, One-sided crimping one-sided seal insertion | |
| Control System | LCD display, single-chip microcontroller | |
| Detection Devices | Crimp test, wire shortage detection, air pressure test, paper winding inspection | |
| Auxiliary Equipment | Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank | |
| Operation Control | Wire feeding, cutting, stripping and movement are controlled via touch screen, with servo control | |
| Wire Seal Insertion | Wire seal insertion unit | |
| Transmission | Ball screw, guide rail and timing belt | |
| Optional | Pressure Measuring Device | Used to measure terminal crimping pressure |
| Application Range | Cutting Length | 68-9999mm |
| Stripping Length | Front: 0.1-12mm, Rear: 0.1-12mm | |
| Wire & Cable Type | Electric wire, high temperature cable, halogen-free cable, Teflon insulated cable (AWG18#-AWG28#) |
-
The servo-driven wire feeding system ensures precise synchronization of cutting, stripping, crimping, and seal insertion, providing consistent and reliable results for a variety of wire types.
-
The three-blade linear structure independently processes the front and rear ends of the wire, efficiently handling both short and long lengths. Integrated debris removal mechanisms maintain a clean workspace for uninterrupted production.
-
An advanced error monitoring system displays real-time alerts on an intuitive touch screen, making fault detection simple and ensuring smooth, efficient operation.
