Spline Rolling Machine
Request a Quote
View All: http://foam-spraying.com

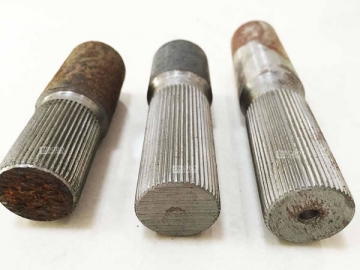

The spline rolling machine is suitable for knurling splines on the bolts and pipes. The knurling methods are both in feed thread and through feed thread. Splines of the bars and pipes can be rhombic, square, straight, and other shapes. The rolling speed is about 1-3m/min, and 300 pieces per hour.
Main Technical Data
| Model | | | | | |
| Max. roll pressure | 180KN | 200KN | 260KN | 500KN | 650KN |
| Threading diameter | Φ6-Φ50mm | Φ5-Φ60mm | Φ5-Φ90mm | Φ5-Φ100mm | Φ5-Φ120mm |
| Threading pitch | 1-3.5mm | 1-4mm | 1-6mm | 1-10mm | 1-12mm |
| Roller diameter | Φ120-Φ170mm | Φ150-Φ270mm | Φ150-Φ300mm | Φ150-Φ300mm | Φ300-Φ410mm |
| Spindle speed | 36-78 r/min | 16-90 r/min | 16-90 r/min | 16-90 r/min | 16-90 r/min |
| Active power | 5.5kw | 11kw | 15kw | 18kw | 22kw |
| Hydraulic power | 2.2kw | 4kw | 5.5kw | 6.5kw | 7.5kw |
| Feeding speed | 5mm /s | 5mm /s | 5mm /s | 4mm /s | 4mm /s |
| Threading length | Unlimited | Unlimited | Unlimited | Unlimited | Unlimited |
| Unit weight | 1700±50kg | 2300±50kg | 3000±50kg | 5000±50kg | 6100±50kg |
| Dimensions | 1600*1550*1445mm | 1700*1850*1550mm | 2450*1780*1670mm | 2450*2000*2000mm | 2300*2540*2700mm |
