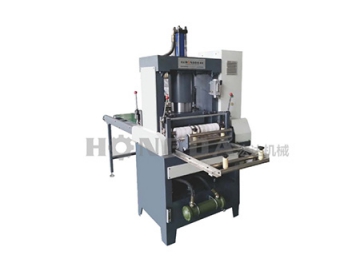

Automatic Rubber Punching Machine
Request a Quote
The automatic rubber punching machine is designed for punching and shearing of rubber prior to the process of outsole pressing. Adopting PLC control with touch screen, it is featured by high automation, high precision of feeding and punching, low energy consumption and high work efficiency, as well as rubber material saving. Cutting tools use magnetic absorption method to ensure high safety.
Model | HD-980 |
Pressure (Ton) | 15 |
Travel (mm) | 150 |
Surface of machine (mm) | 400x280 |
Cylinder bore (mm) | 80 |
Modes of punching | Dropping, lifting, feeding |
Power (kg) | 3.75 |
Weight (kg) | 800 |
Dimension (mm) | 3100x1150x2300 |

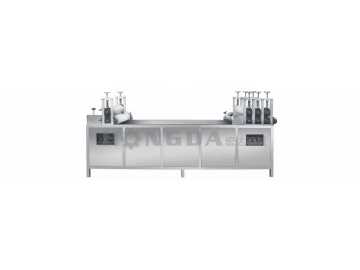

Can be used together with rubber sheet cooling machine.
