Vicot's gas absorption heat pump system uses natural gas as a clean driving energy. It uses MR717 as the refrigerant, and water as the absorbent, then, using a fin heat exchanger, it can extract the low grade heat energy from the air. Its heating efficiency is 1.8 times better than gas boiler available on the market today, making it an efficient piece of energy utilization equipment.
The gas fired absorption heat pump is divided into the heating unit and hot water unit, both of which are suitable for common heat requirement locations likes schools, other public buildings and residential spaces.
| Item | Standard heating conditions | ||
| Nominal heating capacity | 64 kW | ||
| Water flow rate | ≥5 m3/h | ||
| Pressure drop | ≤70 KPa | ||
| Min water input temperature | 9°C | ||
| Max water outlet temperature | 65°C | ||
| Environment temperature | MAX | 20°C | |
| MIN | -30°C | ||
| Rated heating input power | 33 kW | ||
| Heating input power setting range | 14-37.7 kW | ||
| Rated natural gas Plow | 3.5 m3/h | ||
| Natural gas Plow setting range | 1.5-4.0 m3/h | ||
| Power | 380V/3Ph/50Hz | ||
| Electric input power | 1.25 kW | ||
| Machine unit weight | 1250 Kg | ||
| Noise | 54 DB(A) | ||
| Size of connecting pipe | Water pipe | G11/4(DN32) In | |
| Natural gas pipe | R1/2 In | ||
| Dimension (L*W*H) | 2380*1380*2200 mm | ||
- The gas absorption heat pump maintains normal operation in the ambient temperature as low as -30℃. With the large output power, it requires less equipment under the same load than other traditional heat pumps.
- It uses a frost free technology, meaning any moisture will not freeze when at 0°C and 95% humidity.
- The gas absorption heat pump uses modular combination, meaning both one-machine and multiple machines can finish the operation process. According to the heat supply demand, users can freely select the number of units, adjust the heating capacity, and control the outlet water temperature, thus avoiding significant heat waste.
- Compared with a conventional boiler, its natural gas consumption is less (only 45%), which reduces pollutant emissions.
- It can be installed directly on rooftop of construction to provide heat for the entire building.

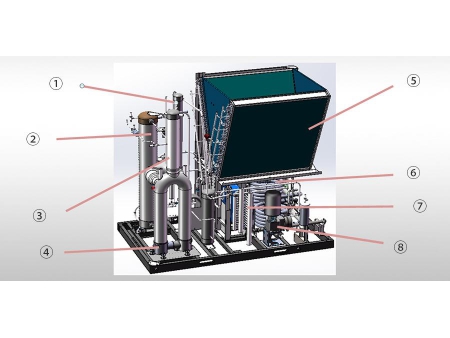

- Rectifier
- Absorber
- Generator
- Burning system
- Evaporator
- Tube in tube heat exchanger
- Flue gas heat recovery
- Solution pump
