PET Preform Moulds
![](public/propic/4243/b_4-pet-preform-moulds_icon.webp)
We not only provide blow moulding machines, but also offer custom PET preform moulds for our customers. Moulds are crucial in the moulding process because they ensure high consistency and precision in the products. The accuracy of mould design and manufacturing determines the final products’ dimensional precision and shape consistency, thus moulds are essential for mass production. Also, moulds can significantly improve production efficiency. With pre-designed moulds, complex and precise parts can be produced in large quantities in a short time, reducing production cycles and costs. Moulds can increase material utilization, reducing waste and rework costs. They can be used for processing various materials, including metals, plastics, glass, and rubber, adapting to different material characteristics and needs, and are widely used across industries.
![](public/propic/4243/b_4-pet-preform-moulds_img02.webp)
We have an experienced design team with engineers skilled in mould design, offering valuable insights and solutions during the design process. Additionally, we provide bespoke production for standard mouth PET preform moulds, wide mouth PET bottle moulds, gallon PET bottle moulds, and cap and closure moulds.
- Customizable preform neck diameter: 28mm, 30mm, 38mm, 45mm, 55mm
- 28mm neck preform weight range: 16-55g
- 30mm neck preform weight range: 14-55g
- 38mm neck preform weight range: 32-88g
- 45mm neck preform weight range: 93-180g
- 55mm neck preform weight: 720g
Specifications
Cavity | Preform | Mould size | Mould weight (kg) | |||
Weight (g) | Neck diameter (mm) | Height (mm) | Width (mm) | Thickness (mm) | ||
2 (1×2) | 720 | 55 | 470 | 300 | 608 | 330 |
4 (2×2) | 720 | 55 | 490 | 480 | 730 | 440 |
8 (2×4) | 16 | 28 | 450 | 350 | 410 | 475 |
12 (2×6) | 16 | 28 | 600 | 350 | 415 | 625 |
16 (2×8) | 21 | 28 | 730 | 380 | 445 | 690 |
24 (3×8) | 28 | 28 | 770 | 460 | 457 | 1070 |
32 (4×8) | 36 | 28 | 810 | 590 | 515 | 1590 |
48 (4×12) | 36 | 28 | 1070 | 590 | 535 | 2286 |
![](public/propic/4243/b_4-1-pet-preform-mould-for-standard-mouth-bottle_img01.webp)

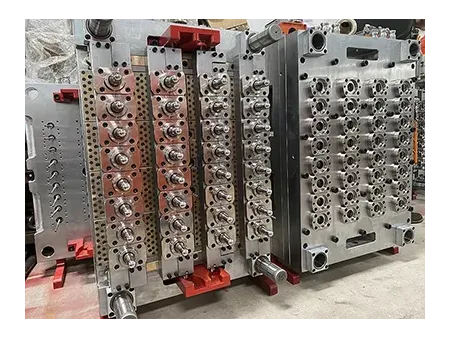

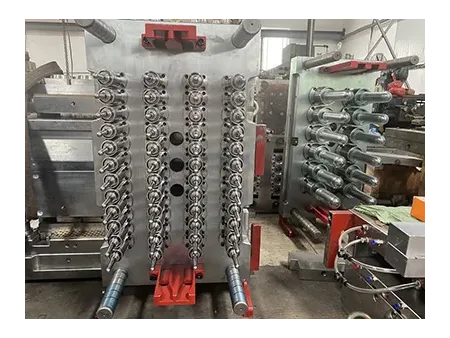

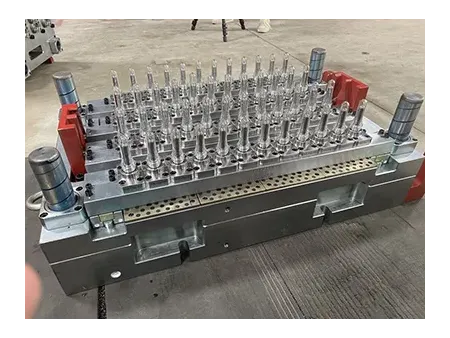

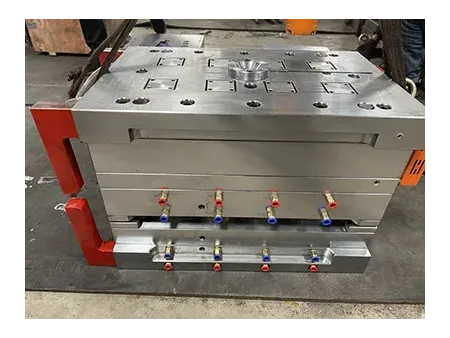

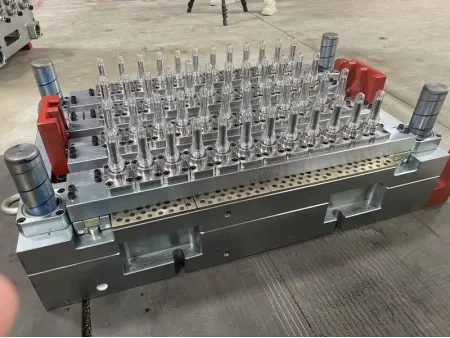

PET Preform Mould for Standard Mouth Bottle
Our standard mouth preform moulds (neck diameter: 28mm, 30mm, 38mm, 45mm) are used to produce preforms of standard sizes and shapes, which can be further processed into final bottles through blow moulding. Standard mouth bottles are widely used in the beverage, cosmetics, pharmaceutical, and chemical industries.
Key Parameters
- Neck size: 28mm, 30mm, 38mm, 45mm
- Preform weight: 16-55g (28mm)
14-55g (30mm)
32-88g (38mm)
93-180g (45mm)

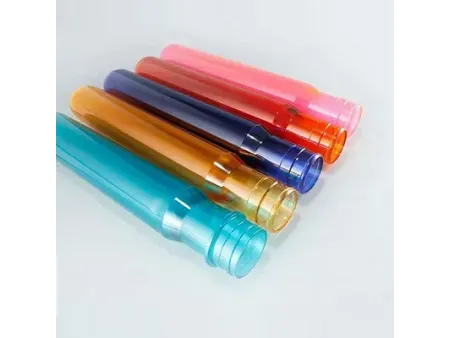

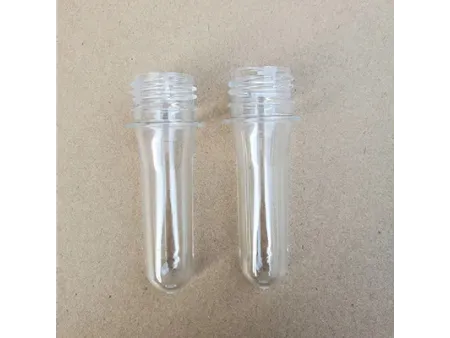

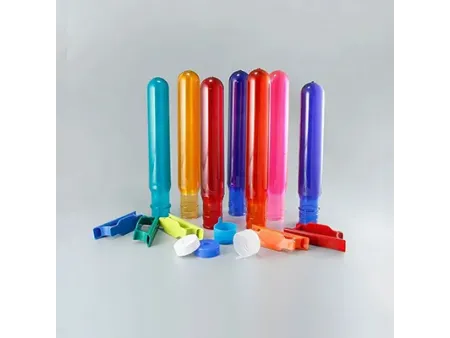

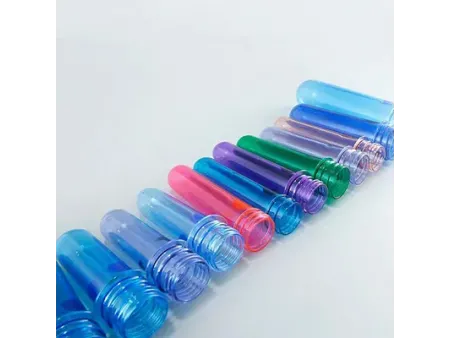

Samples of PET Preforms
PET Preform Mould for Wide Mouth Jar
Wide mouth preform moulds (neck diameter: 70mm, 85mm, 88mm, 102mm) are used to produce preforms for wide mouth jars. Wide mouth jars are commonly used for packaging food, cosmetics, and pharmaceutical products. Preforms are the initial shape of the bottles, made through injection moulding and then processed into final bottles through blow moulding.
Key Parameters
- Preform weight: 40-75g
Samples of Wide Mouth Jar Preforms
PET Preform Mould for Gallon Bottle
PET preform moulds for gallon bottles are specifically designed to produce preforms for gallon bottles. Gallon bottles are widely used for packaging water, oil, chemicals, and other liquids. Preforms are the initial shape of the bottles, made through injection moulding and then processed into final bottles through blow moulding.
Key Parameters
- Preform weight: 650-750g
- Preform height: 402-428mm
