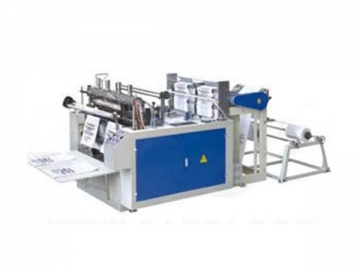

Computer Control High-Speed Vest Rolling Bag Making Machine (Double Layer)

Computer Control High-Speed Vest Rolling Bag Making Machine (Double Layer)
Computer Control High-Speed Vest Rolling Bag Making Machine (Double Layer)
Request a Quote

Features of Computer Control High-speed Vest Rolling Bag-making Machine DZB (Double Layer)

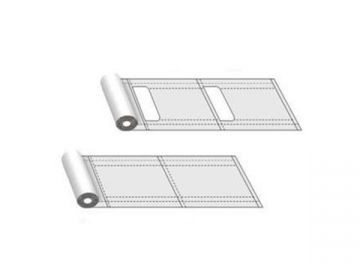

1. This machine a specially-designed point-cut rolling dual-purpose for vest & flat bags.
2. It is controlled by a computer.
3. For the step (servo) setting length system, the sealing-cutting dimensions errors are greatly reduced.
4. The figure of printing bags can be positioned accurately for the installation of photoelectric eyes track system.
5. The length of the bag can be adjusted through the computer numerical control.
6. The machine will automatically stop and sound a warning if there is anything wrong with the printing bags.

Applications of Computer Control High-speed Vest Rolling Bag-making Machine DZB (Double Layer)
The high and low density polyethylene film bags produced by the machine are applied to shopping in the supermarkets, shops and markets.

Technical Parameters of Computer Control High-speed Vest Rolling Bag-making Machine DZB (Double layer)
Model DZB-500 DZB-600 DZB-800
Max. Width of Bags (mm) 400 500 700
Max. Length of Bags (mm) 1200 1200 1200
Bag Thickness 0.008-0.15 0.008-0.15 0.008-0.10
Speed of Bag-making(pc/min) 140-200 40-120 40-120
Motor Power (kw) 1.1 1.1 1.5
Electric Heating Power 1.2 1.6 2.2
Packing Dimensions(L ×w × h)mm 3600×1200×1700 3400×1300×1700 3600×1500×1700
Machine Weight (kg) 800 900 100
