KE20/25 Electric Crawler Excavator
Request a Quote
Battery-electric compact excavator with operating weight of 2000kg
- Bucket capacity
0.035m³ - Chassis width
1100-1400mm - Track length
1500mm - Gradeability
40°
Specifications
| Model | KE20 | KE25 |
| Bucket capacity | 0.035m³ | 0.035m³ |
| Chassis width | 1100-1400mm | 1100-1400mm |
| Track length | 1500mm | 1500mm |
| Gradeability | 40° | 40° |
| Ground clearance | 385mm | 385mm |
| Track width | 230mm | 230mm |
| Overall dimension | 3550×1100/1400×2300mm | 3700×1100/1400×2300mm |
| Transport length | 3550mm | 3700mm |
| Battery capacity | 200Ah | 200Ah |
| Battery voltage | 72V | 72V |
| Charging time | 6h-8h | 6h-8h |
| Noise level | < 55dB | < 55dB |
| Motor power | 6kW | 6kW |
| Power consumption | 1kW/h | 1kW/h |
| Max. digging height | 3016mm | 3200mm |
| Max. dumping height | 2133mm | 2290mm |
| Max. digging depth | 2050mm | 2241mm |
| Max. digging radius | 3800mm | 3800mm |
| Turning radius | 1645mm | 1645mm |
| Bucket excavating force | 16kN | 16kN |
| Operating weight | 2000kg | 2000kg |
| Configuration - valve | Beifang Brand | Beifang Brand |
| Configuration - pump | K.Jun Brand | Xingzou Brand |
| Load sensitive system | Yes | Yes |
- KE20 Electric Crawler Excavator
- KE25 Electric Crawler Excavator

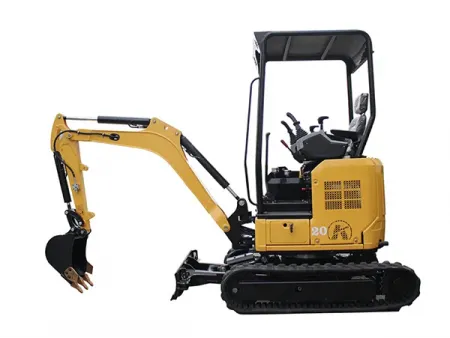

Features of KE20 Electric Crawler Excavator
- Piston pump with load-sensitive system
- Large LED display that clearly shows real-time operating status, battery level, and system data for improved convenience and monitoring
- Dual swing motor design offers higher support strength and smoother movement for enhanced operational stability
- Electronic control joystick
- Fully enclosed travel motor protection, high- and low-speed motors are shielded to prevent damage and extend service life
- Maintenance panels on three sides allow easy daily inspection and servicing

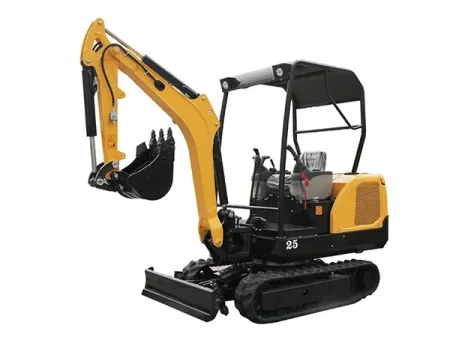

Features of KE25 Electric Crawler Excavator
- One-touch start system that simplifies startup and eliminates the risk of lost keys or ignition failure
- High/low-speed motor switching
- Dual swing motor system same as KE20, ensuring excellent stability and reliable support
- Safety lock system prevents accidental movement when the operator leaves the cab or during incomplete shutdown
- Optional swing boom to enhance flexibility for work in confined or complex spaces
- Hammer cut-off valve made of wear-resistant cast steel to prevent hydraulic leaks and ensure long-term system reliability
