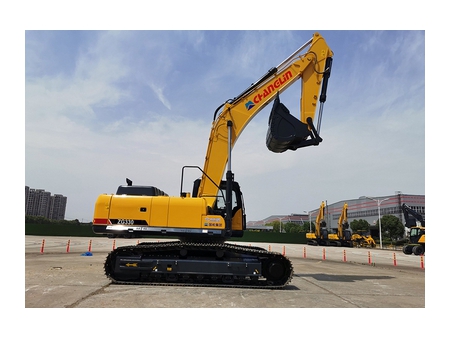

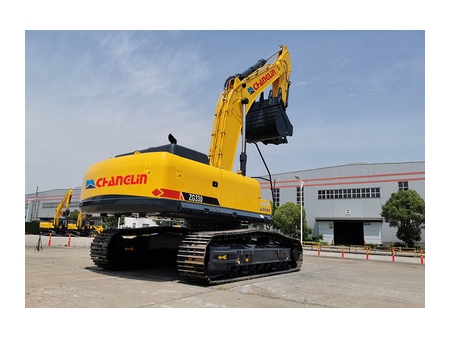

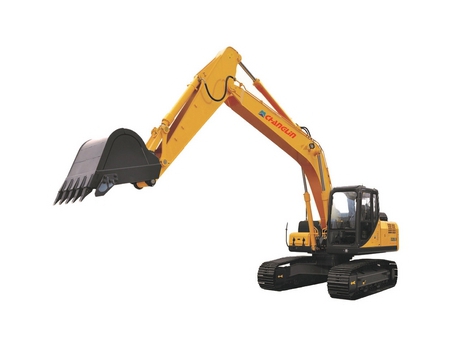

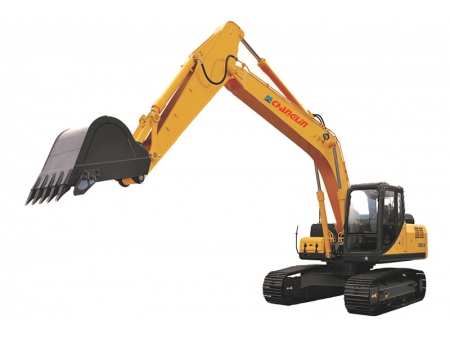

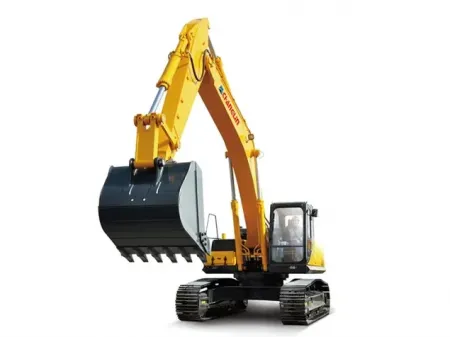

Crawler Excavator ZG330

Request a Quote

View All: http://cn-changlin.com/2-10-crawler-excavator.html

CHANGLIN ZG330 crawler excavator adopts Cummins EFI engine that complies III-stage emission regulations, providing strong power, exceptional durability and improved energy efficiency. The advanced negative flow control hydraulic system enables comfortable operation, high work efficiency and outstanding cost effectiveness. There are four power modes to adapt to different jobsite conditions. The fuel injection system with real-time control realizes complete combustion of fuel, thus improving the fuel efficiency. The reliability and stability of the crawler excavators are guaranteed thanks to the use of full three-dimensional modeling and finite element analysis technology.

Operating weight: 31380KG
Rated power: 241kW
Bucket capacity: 1.6m³

Video

Operating weight (Kg)	31380
Rated bucket capacity (m³)	1.6
Overall length (mm)	10686
Overall width (Standard track shoe) (mm)	3280
Overall height (mm)	3546
Standard track shoe width (mm)	600
Travelling speed (H/L) (Km/hr)	4.8/3.0
Swing speed (rpm)	10
Gradeability (Degree (%))	35 (70%)
Ground pressure (Kgf/cm²)	0.594
Maximum digging radius (mm)	10233
Maximum digging depth (mm)	6536
Maximum digging height (mm)	9617
Bucket digging force (kN)	225
Stick digging force (kN)	182
Model	Cummins 6LTAA8.9-C325
Type	6-cylinder in-line, four-stroke turbocharger
Rated power	241kW (325PS)@2000rpm

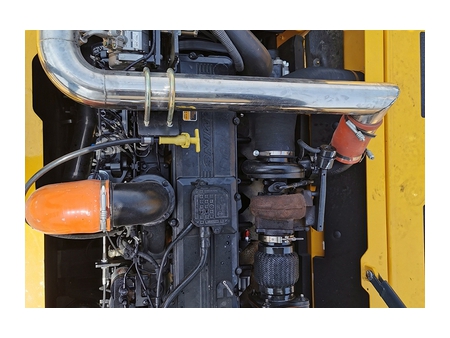

The engine used in the crawler excavator is a new generation of high-power EFI engines from Cummins, featuring strong power, low fuel consumption and high reliability.

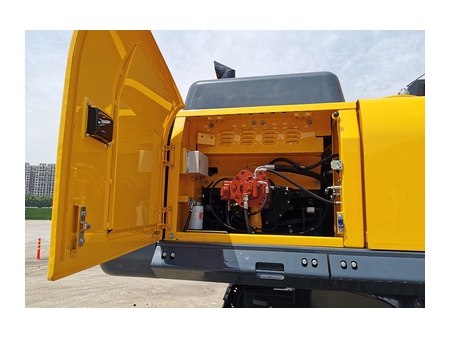

The newly developed hydraulic system coupled with large displacement pump and high flow valve ensures large flow area, minimized pressure loss, reasonable flow distribution, better movement coordination and easy operation.

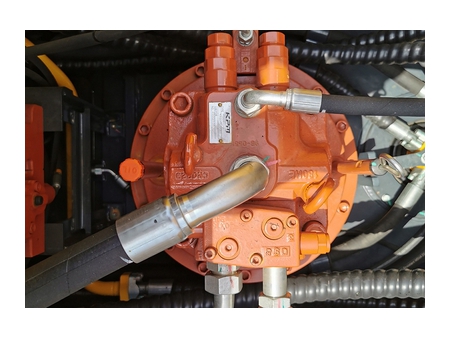

The hydraulic cylinders are of large diameter and all the key hinge points are optimally arranged to enhance the digging force of the crawler excavator. The automatic supercharging function is available to enable the digging force to be automatically increased as the load increases. The design of large displacement slewing drive and high gear ratio results in a higher starting torque and slewing braking operation.

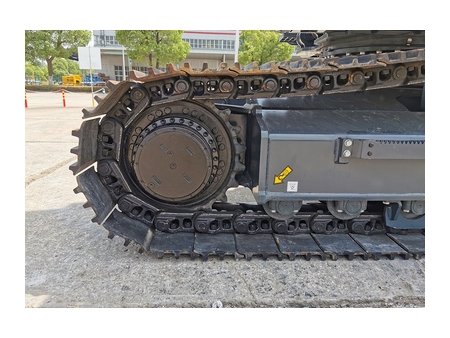

The crawler excavator is configured with heavy-duty reinforced boom, short stick, large-capacity bucket, widened heavy-duty chassis and optimized box-shaped structure, to adapt to various working environments even in extremely harsh working conditions.

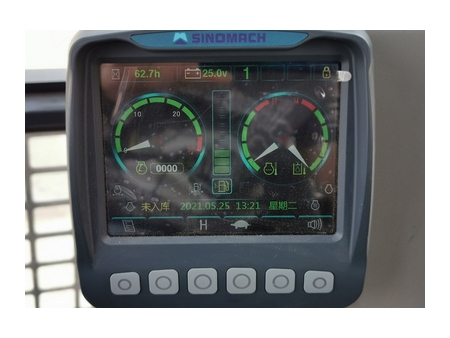

A 5.7-inch glare-free color monitor features high-resolution and high-brightness. The intelligent electronic monitoring system is has functions of maintenance reminding, automatic fault diagnosis and alerting.
