Scraper Conveyor

Request a Quote

Website: http://fertilizermachine-en.com/5-1-scraper-conveyor.html

Conveying Equipment for
Fertilizers and Dry Bulk Materials

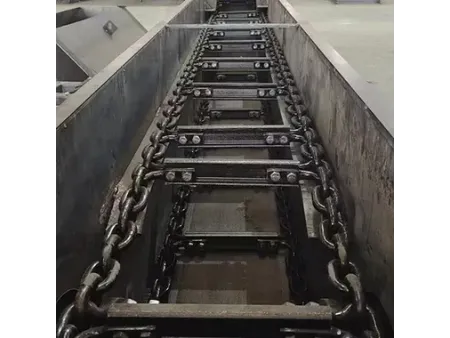

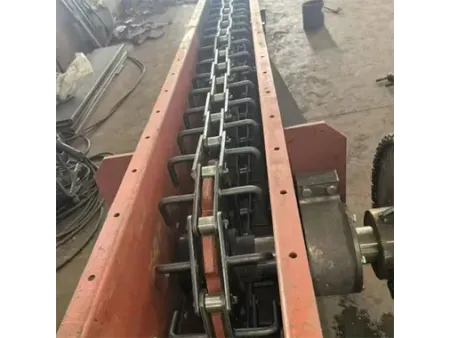

Scraper conveyor is an industrial device specifically designed for the continuous and enclosed transport of bulk materials. Widely used in industries such as coal, mining, cement, grain processing, and chemicals, it's suitable for moving lumpy, granular, and powdered materials (like coal, ore, cement clinker, grain, and fertilizer) horizontally or on an incline. It is especially effective in harsh conditions with high temperatures, moisture, and dust, making it ideal for underground mining, production line transfers, and warehouse loading/unloading.

High-capacity design
The large-capacity trough design allows you to adjust the conveying capacity based on production needs, enabling efficient, large-scale material transfer.
Corrosion & wear resistance
The trough and scrapers are made from high-wear, corrosion-resistant materials to extend the equipment's service life.
Environmentally compliant
A fully enclosed structure effectively prevents dust leakage, meeting all environmental protection requirements.

Specifications

Model	Conveying Capacity (t/h)	Conveying Distance (m)	Motor Power (kW)	Allowable Material Particle Size (mm)	Allowable Material Temperature (℃)	Allowable Material Hardness	Dust Concentration in Air (mg/ m³)	Conveying Speed (m/s)	Weight (kg)
									Front part	Middle trough	Tail part
KS300	15-20	5-20 (including 20)	5.5	5-40	≤300	≤8 Mohs Hardness	≤6	0.29-0.5	425	213	410
		20-30	7.5
KS400	20-45	5-20 (including 20)	7.5	5-40					653	262	430
		20-30	11
KS500	25-50	5-20 (including 20)	7.5	5-40					677	323	544
		20-30	11
KS630	30-70	5-20 (including 20)	11	5-45					730	420	598
		20-30	15
KS800	40-80	5-20 (including 20)	18.5	5-65					900	500	700
		20-30	22
KS1000	60-120	5-20 (including 20)	18.5	5-65					1100	550	1000
		20-30	22

The standard shell material is Q235 steel, with steel chains. It can also be custom-made entirely from stainless steel.

On-Site Cases

Shandong Shikefeng Group purchased KS630 scraper conveyor for the batching section of their 100,000 tons per year compound fertilizer production line.

Stanley Agriculture Group Co., Ltd. (Shandong) purchased KS630 scraper conveyor for dust collection system in compound fertilizer production line.

Shenyang Lutian Fertilizer Co., Ltd. purchased KS400 scraper conveyor for high tower granulation line.
