Dust Collection & Control Equipment for
Fertilizer Plant

Baghouse dust collector is used in fertilizer industry to purify particulate matter and dust-containing exhaust gases generated during workshop production. It is especially suitable for controlling emissions of high-temperature, high-concentration, corrosive, or sticky dust, ensuring emission standards compliance and improving the production environment.

Versatile filtration
A variety of filter media (polyester, polypropylene, fiberglass, etc.) and cleaning methods (pulse-jet, reverse-air, shaking) are available to handle various conditions, including high-temperature, high-humidity, corrosive, or sticky dust.
Long-term performance
It features automated cleaning and smart monitoring, which extends the lifespan of the filter bags. The modular design allows for quick filter bag replacement and dust bin cleaning without needing to shut down the entire machine.

Specifications

Model	DMC-40	DMC-60				DMC-100	DMC-150	DMC-200			DMC-300	DMC-500	DMC-800		DMC-1200
Filtration Surface Area (m²)	40	60				100	150	200			300	500	800		1200
Handling Air Volume (m³/h)	3000	5000				8000	11000	15000			20000	35000	55000		80000
Inlet Dust Concentration (g/Nm³)	≤50						≤80					≤100
Outlet Dust Concentration (g/Nm³)	≤15
Compressed Air Pressure (MPa)	0.3-0.5											0.4-0.6
Compressed Air Consumption (m³/min)	0.25			0.3		0.5	0.8		1.0	1.5		2.0	3.0	4.0
Flow Resistance (Pa)	1500-1750						1200-1500					1000-1200
Negative Pressure (Pa)	7000
Air Leakage Rate (%)	≤1.0
Material of Filter Bag & Cage	Depending on the characteristics of dust-containing gas (such as acidity, alkalinity, temperature)
Insulation Area (m²)	20		25		32		38		50	70		130	180	300

The shell is made of Q235 steel or 304 stainless steel.

On-Site Cases

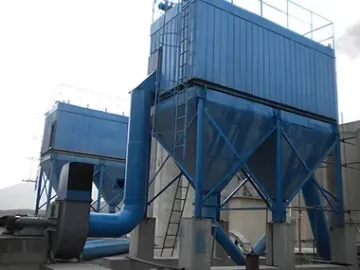

Yantai Haizhou Biotechnology Co., Ltd., a 100,000-ton compound fertilizer line equipped with our DMC300 baghouse dust collector.

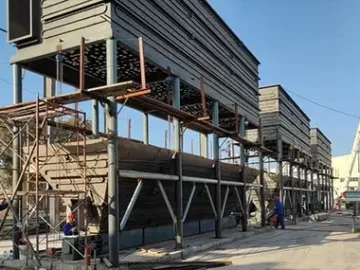

Hubei Huafeng Biochemical Co., Ltd., a 200,000-ton compound fertilizer production line equipped with our DMC500 baghouse dust collector.
