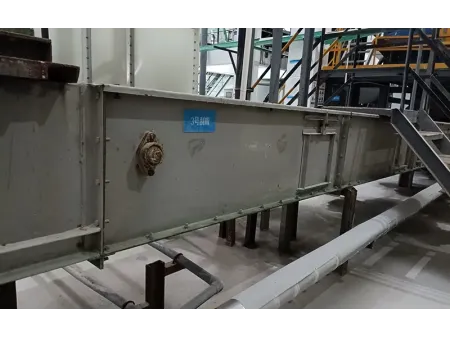

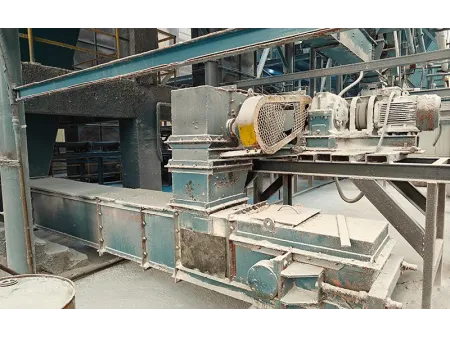

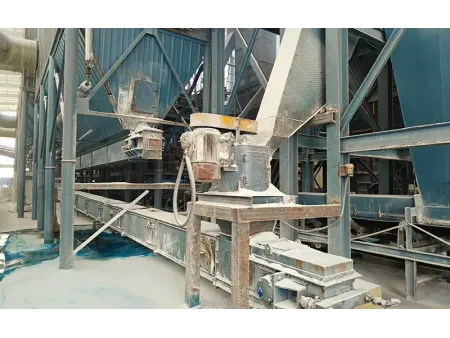

Bulk handling conveyor for transporting bulk materials in a closed trough

Scraper chain conveyors are ideal for transporting bulk materials such as powders, small granules, and small blocks within a closed, rectangular housing. These conveying machines use moving scraper chains to continuously transport materials. They can operate horizontally, at an incline, or vertically, making them versatile for different configurations. Additionally, scraper chain conveyors can function as individual machines or be combined for larger systems, providing flexibility for various industrial needs.

Specifications

Model	Conveying speed (m/s)	Conveying capacity (m³/h)	Conveying length (m)	Motor power (kW)
MS16	0.4-0.5	2-10	3-80	0.27-11
MS20	0.4-0.5	10-15	3-80	0.4-15
MS25	0.4-0.5	15-20	3-80	0.6-18.5
MS32	0.4-0.5	20-30	3-80	1.5-30
MS40	0.4-0.5	30-40	3-80	1.5-37
MS50	0.4-0.5	40-50	5-80	2.2-55
MS63	0.4-0.5	50-60	5-80	3-75
MS80	0.4-0.5	60-80	5-80	7.5-75
MS100	0.4-0.5	80-100	5-80	11-75

Features

The conveyor system allows for multiple feed and discharge points along the transport path, enabling efficient and adaptable bulk material handling.
Material is transported within a sealed housing, making it suitable for handling large, toxic, explosive, or high-temperature materials while improving working conditions and reducing environmental pollution.
The conveyor supports various configurations, whether horizontal, inclined, or vertical, offering broad adaptability for different operational needs.
