Conveying Equipment for
Fertilizers and Dry Bulk Materials
Fertilizers and Dry Bulk Materials

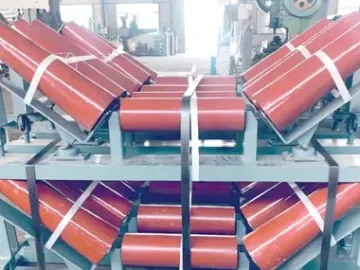

Belt Conveyor
Request a Quote
Belt conveyor is a versatile and continuous conveying device. Widely used in industries like mining, ports, power, and building materials, it efficiently transports lumpy, granular, and powdered materials (such as ore, coal, and sand) as well as packaged goods (like boxes and parcels). Its high-efficiency, low-damage design makes it a core piece of equipment for long-distance, high-volume material transfer.
- Continuous operation
Supports non-stop operation. Conveying capacity can be precisely matched to material properties and production needs by adjusting the belt speed and width.
- Versatile belt materials
Available with various belt materials (rubber, PVC, nylon, etc.) to suit high-temperature, humid, and corrosive environments, such as underground mining or food-grade applications.
- Stable operation

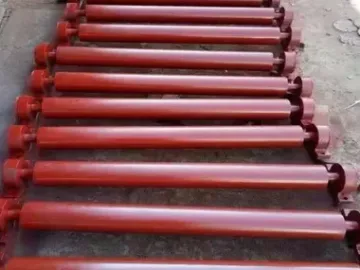

The synergy between the idler and roller sets ensures smooth belt operation, reducing the risk of shaking or wandering.
Specifications
The bracket material is Q235 steel, and the belt is made of wear-resistant, acid- and alkali-resistant rubber.
| Conveying Capacity (t/h) | Belt Width (mm) | Power Range (kW) | Conveying Speed (m/s) | ||||||
| 0.8 | 1 | 1.25 | 1.6 | 2 | 2.5 | 3.15 | |||
| 500 | 1.5~30 | 78 | 97 | 122 | 156 | 191 | 232 | - | |
| 650 | 1.5~40 | 131 | 164 | 206 | 264 | 323 | 391 | - | |
| 800 | 2.2~75 | - | 278 | 348 | 445 | 546 | 661 | 824 | |
| 1000 | 3~100 | - | 435 | 544 | 696 | 853 | 1033 | 1233 | |
| 1200 | 4~185 | - | 655 | 819 | 1048 | 1284 | 1556 | 1858 | |
| 1400 | 4~185 | - | 891 | 1115 | 1427 | 2118 | 2118 | 2528 | |
| Conveying Capacity (t/h) | Belt Width (mm) | Power Range (kW) | Conveying Speed (m/s) | ||||||
| 4 | 0.8 | 1 | 1.25 | 1.6 | 2 | 2.5 | |||
| 500 | 1.5~30 | - | 41 | 52 | 66 | 84 | 103 | 125 | |
| 650 | 1.5~40 | - | 67 | 88 | 110 | 142 | 174 | 211 | |
| 800 | 2.2~75 | - | 118 | 147 | 184 | 230 | 289 | 350 | |
| 1000 | 3~100 | - | - | 230 | 288 | 368 | 451 | 546 | |
| 1200 | 4~185 | 2202 | - | 345 | 432 | 553 | 677 | 821 | |
| 1400 | 4~185 | 2996 | - | 469 | 588 | 753 | 922 | 1117 | |
On-Site Cases
Da Nang, Vietnam compound fertilizer production line equipped with B500, B600, B800 belt conveyors.
Shenyang Lutian Fertilizer Co., Ltd. compound fertilizer line equipped with post-granulation B800 belt conveyor.
Wuxi Pacific Fertilizer Co., Ltd. compound fertilizer line equipped with B600 belt conveyor with sealing cover.
