Fertilizer Screening Equipment

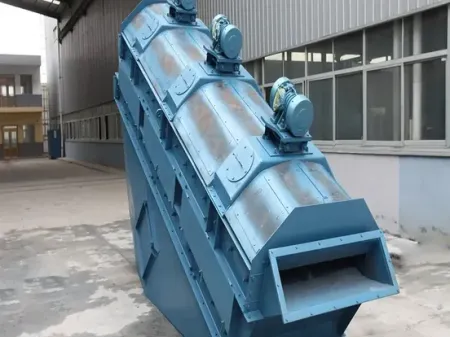

Vibrating Flip-Flow Screen
Request a Quote
Vibrating flip-flow screen can be categorized as a linear, circular, or exciter-type vibrating screen. It is widely used in industries like mining, coal, chemicals, food, and building materials for the precise screening and grading of various granular and powdered materials. In the fertilizer industry, it is essential for sorting different-sized granules to ensure product quality and a smooth production process.
- Anti-clogging design
Continuous and rapid vibration spreads material evenly across the screen, effectively preventing particles from clumping and blocking the mesh. This enhances the flow rate and throughput of the screening process.
- Precise particle control
Screen meshes with different apertures can be changed as needed. Fine-tuning the amplitude and frequency ensures that the particle size of each batch is stable and within a controllable error range. The combination of an eccentric exciter and spring/rubber isolation mounts concentrates the vibration force within the screen box, which can quickly loosen wet, sticky materials while maintaining a continuous flow of dry powders to prevent mesh clogging.
Specifications
| Model | Screening Area (m²) | Production Capacity (t/h) | Motor Power (kW) | Vibration Frequency (beats per minute) | Amplitude (mm) | Remarks |
| | 3 | 3-5 | 2×1.1 | 960 | 4-6 | Single-deck and double-deck screens are available for customer to choose |
| | 4.8 | 5-10 | 2×1.1 | 960 | 4-6 | |
| | 7 | 10-15 | 2×1.5 | 960 | 4-6 | |
| | 7.5 | 15-20 | 2×1.85 | 960 | 4-6 | |
| | 9.6 | 20-25 | 2×2.2 | 960 | 4-6 | |
| | 10 | 25-30 | 2×2.2 | 960 | 4-6 | |
| | 12 | 30-35 | 3×2 | 960 | 4-6 | |
| | 13.2 | 35-40 | 3×2 | 960 | 4-6 |
The screen body is made of Q235 steel, and the screen mesh is made of stainless steel.
