Steel Screen / Metal Mesh / Steel Mesh Screen

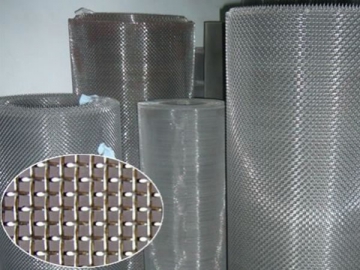

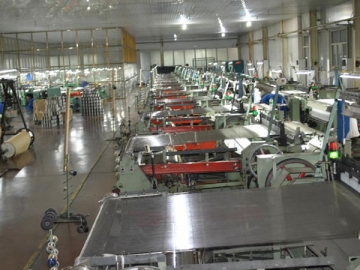

We have years of experience manufacturing woven wire mesh products and wire cloths. These stainless steel wire meshes are made from the following types of steel: 430, 302, 304, 304L 304HC, 316, 316L, 316Ti, 321, 309, 310.

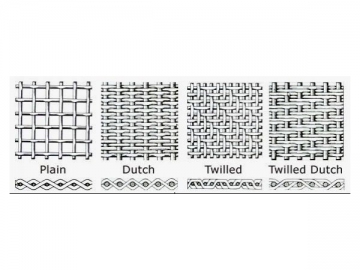

The weave patterns applied for stainless steel wire mesh or wire cloth include plain weaves, twill weaves, Dutch plain weaves or Dutch twill weaves.

Material: Stainless steel wire SUS304, SUS304L, SUS316 or SUS316L for stainless steel woven wire mesh and cloth.

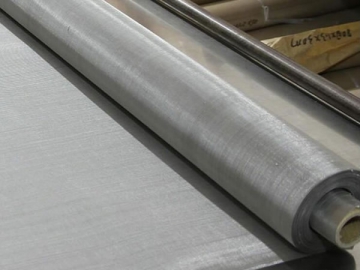

Standard roll size: Standard width of stainless steel wire mesh: 1m or 48"standard roll length of stainless steel wire mesh: 30m or 100'.

Wire Mesh Packing: wrapped with moister-proof paper, then in wooden cases.

Stainless Steel Woven Wire Mesh(Plain Weave)
Mesh/inch Wire diameter
(mm)
Aperture
(mm)
Mesh/inch Wire diameter
(mm)
Aperture
(mm)
2mesh 1.80 10.90 60mesh 0.15 0.273
3mesh 1.60 6.866 70mesh 0.14 0.223
4mesh 1.20 5.15 80mesh 0.12 0.198
5mesh 0.91 4.17 90mesh 0.11 0.172
6mesh 0.80 3.433 100mesh 0.10 0.154
8mesh 0.60 2.575 120mesh 0.08 0.132
10mesh 0.55 1.990 140mesh 0.07 0.111
12mesh 0.50 1.616 150mesh 0.065 0.104
14mesh 0.45 1.362 160mesh 0.065 0.094
16mesh 0.40 1.188 180mesh 0.053 0.088
18mesh 0.35 1.060 200mesh 0.053 0.074
20mesh 0.30 0.970 250mesh 0.04 0.061
26mesh 0.28 0.696 300mesh 0.035 0.049
30mesh 0.25 0.596 325mesh 0.03 0.048
40mesh 0.21 0.425 350mesh 0.03 0.042
50mesh 0.19 0.318 400mesh 0.025 0.0385
Stainless Steel Woven Wire Mesh (Twill Weave)
Mesh Wire diameter(mm) Aperture(mm) Material(AISI)
250mesh wire dia.0.040mm 0.063 304 or 316
300mesh wire dia.0.040mm 0.044 304 or 316
325mesh wire dia.0.035mm 0.043 304 or 316
350mesh wire dia.0.030mm 0.042 304 or 316
400mesh wire dia.0.030mm 0.033 304 or 316
Stainless Steel Wire Cloth (Plain Dutch Weave)
Mesh Wire Diameter(mm) Aperture
Vertical Horizontal Vertical Horizontal Microns
12mesh 64mesh 0.62mm 0.42mm 270-290um
14mesh 80mesh 0.50mm 0.30mm 220-240um
24mesh 110mesh 0.38mm 0.25mm 115-125um
30mesh 160mesh 0.23mm 0.18mm 95-100um
40mesh 200mesh 0.18mm 0.14mm 70-75um
50mesh 250mesh 0.14mm 0.11mm 60-63um
Stainless Steel Wire Cloth (Twill Dutch Weave)
Mesh Wire Diameter(mm) Aperture
Vertical Horizontal Vertical Horizontal Microns
20mesh 250mesh 0.25mm 0.23mm 110-120um
32mesh 360mesh 0.23mm 0.15mm 100-110um
40mesh 400mesh 0.18mm 0.14mm 90-110um
50mesh 500mesh 0.14mm 0.11mm 70-90um
50mesh 600mesh 0.14mm 0.09mm 60-70um
80mesh 800mesh 0.12mm 0.07mm 45-65um
165mesh 800mesh 0.07mm 0.05mm 24-26um
120mesh 1000mesh 0.08mm 0.055mm 27-28um
165mesh 1450mesh 0.07mm 0.04mm 16-18um
325mesh 2300mesh 0.038mm 0.025mm 8-9um

Note: We can customize the products according to your specifications
