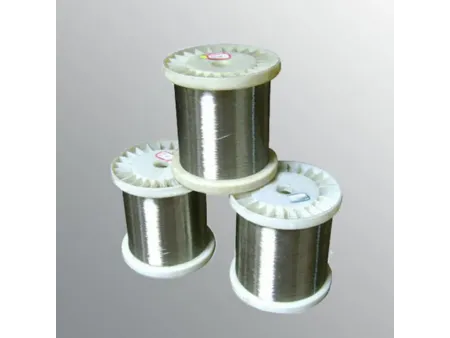

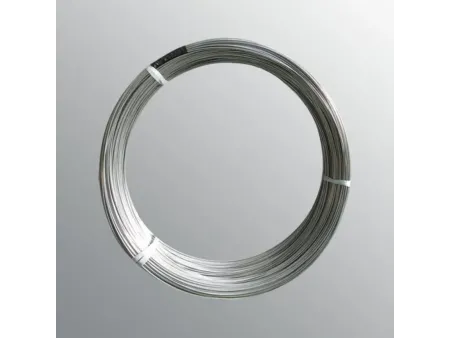

Stainless Steel Wire (SUS)
Request a Quote
Stainless steel wires are manufactured from high-quality stainless steel and is available in different grades, including 301, 302, 304, 304L, 316, 316L, 310, 310S, and 321. It can be further processed through annealing, nickel or copper plating, and drawing to achieve finer diameters, with a minimum size of 0.03mm.
Applications
Stainless steel wire is widely used in industries that require strength, durability, and corrosion resistance, including:
- Construction industry: Reinforcement in building structures, protective nets, and fencing.
- Machinery manufacturing: Springs and transmission components.
- Chemical industry: Filtration materials and internal components for reactors.
- Medical equipment: Surgical instruments and medical implants.
Specifications
| Wire Type (strands/mm) | Wire Diameter Tolerance (mm) | Tensile Strength (Mpa) | Stranded Outer Diameter (mm) | Direction of Lay | Length of Lay (mm) | Number of Wires | Resistance (Ω/Km) |
| 0.320±0.004 | - | ≤0.98 | S | 20-23 | 7 | 1.210-1.284 | |
| 0.058-0.059 | ≥1200 | 0.52-0.54 | S/Z | 3.0-4.0 (inside) 4.5-6.0 (outside) | 14 | 771.3-787.1 | |
| 0.160±0.005 | ≥300 | 1.38-1.40 | - | - | 14 | - |
Features
- Resistant to high temperatures, oxidation, and corrosion, offering reliability in demanding environments.
- High hardness and elasticity, ensuring durability in mechanical applications.
- Excellent wear and pressure resistance, providing long-term reliability in structural and industrial uses.
