Automatic Wire Stripping and Terminal Crimping Machine

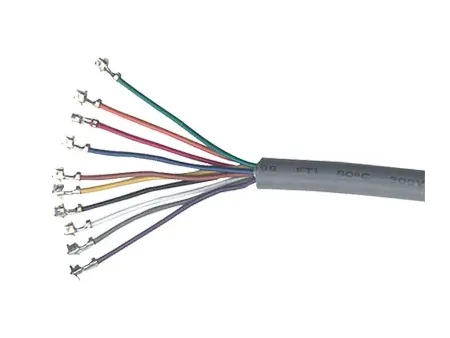

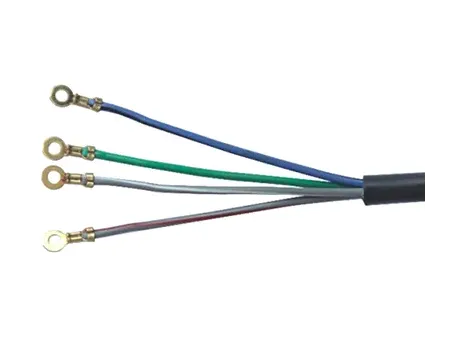

Stripping and terminal crimping machines have an important role in modern cable assembly. With a focus on making the process more efficient, we have developed a wire terminating machine that integrates both wire stripping and terminal crimping into one seamless operation. Designed to handle tasks with precision up to 0.01mm, this solution simplifies the production of computer cables, multi-core wires, and terminals, ensuring consistent and reliable results for high-demand applications.
- Stripping Length: 1.0-12mm
- Stripping Accuracy: 0.01mm
| Model | |
| Dimensions (L×W×H) | 330×300×300mm |
| Weight | 50kg |
| Power Supply | AC220V |
| Motor | 0.55kW, 3.1/2.0 |
| Crimping Force | 1500kg |
| Stroke | 30mm |
| Throat Height | 90mm |
| Max. Feeding Distance | 20mm |
| Stripping Length | 1.0-12mm |
| Wire Size | AWG16-AWG34 |
-
The integrated process performs stripping and crimping simultaneously, reducing production time while maintaining consistent performance for various cable types.
-
Compact and lightweight with variable frequency control, it minimizes noise and energy consumption, providing a sustainable and ergonomic solution.
-
Adjustable stripping blades allow precise micro-adjustments, ensuring consistent accuracy across all wire types.
-
An efficient waste removal system extracts stripped insulation debris, keeping the workspace clean and organized.
