Automatic Multifunctional Multi-Wire Terminal Crimping Machine

Automatic Multifunctional Multi-Wire Terminal Crimping Machine
Automatic Multifunctional Multi-Wire Terminal Crimping Machine
Request a Quote

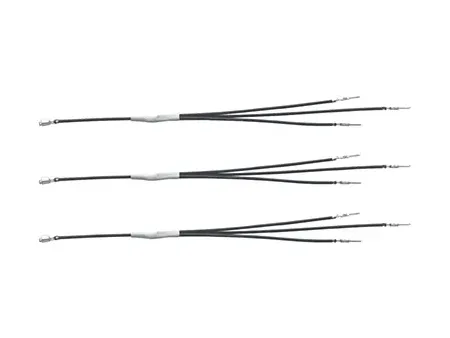

Handling up to 1,000 wires per hour, our multifunctional crimping solution supports processes such as cutting and crimping configurations such as one-to-two, one-to-three, and one-to-four wire setups. Custom configurations are available to meet specific client requirements. Designed for 18AWG to 26AWG wires, it is compatible with a variety of wire types, including PVC, silicone, Teflon-coated, and halogen-free wires. Its versatility and ease of reconfiguration make it suitable for a wide range of production scenarios.

Crimping Capacity
  • 1,000 wires per hour at 850mm length
Technical Data
General Model
Dimensions (L×W×H) 1950×770×1600mm
Weight Approx. 600kg
Power Supply AC220V 50Hz
Rated Current 30A
Power 7.5kW
Air Pressure 0.4-0.6Mpa (the air must be filtered and dried)
Space Requirement 1.2×2.5m
Crimping Force 2T
Functions Crimping Capacity 1000 wires/hr at 850mm length (depending on the wire length)
Wire Processing Wire cutting, Multi-wire combined crimping (1-to-2), Multi-wire combined crimping (1-to-3), Multi-wire combined crimping (1-to-4), Can be customized
Control System LCD display, single-chip microcontroller
Detection Devices Crimp test, wire shortage detection, air pressure test, paper winding inspection
Auxiliary Equipment Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank
Operation Control Wire feeding, cutting, stripping and movement are controlled via touch screen
Optional Pressure Measuring Device Used to measure terminal crimping pressure
Application Range Cutting Length 450-1300mm (customizable)
Stripping Length Front: 1mm-12mm, Rear: 1mm-12mm
Wire & Cable Type Electric wire, high temperature cable, Teflon insulated cable (AWG26#-AWG18#)
Features
  • Its encoder-based wire feeding compensation ensures precise stripping and feeding, maintaining consistent results across varying wire lengths.

  • Equipped with an integrated error monitoring system to display real-time alerts on a touch screen, simplifying fault detection and minimizing production downtime.
