Automatic 2-Wire Three-Sided Terminal Crimping Machine

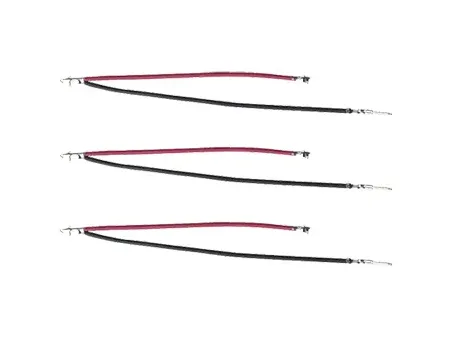

Efficient wire processing is crucial for modern wire manufacturing, especially when handling two wires that need to be crimped simultaneously. Our three-sided terminal crimping solution supports single-end, double-end, and multi-terminal crimping operations, accommodating wire gauges from 18AWG to 24AWG. Compatible with PVC, silicone, Teflon-coated, and halogen-free wires, it provides a versatile and reliable option for diverse applications.
- 2,600 wires per hour at 100mm length
| General | Model | |
|---|---|---|
| Dimensions (L×W×H) | 1430×730×1600mm | |
| Weight | Approx. 500kg | |
| Power Supply | AC220V 50Hz | |
| Rated Current | 15A | |
| Power | 3kW | |
| Air Pressure | 0.4-0.6Mpa (the air must be filtered and dried) | |
| Space Requirement | 1×1.5m | |
| Crimping Force | 2T | |
| Functions | Crimping Capacity | 2600 wires/hr at 100mm length (depending on the wire length) |
| Wire processing | Wire cutting, One-sided crimping, Two-sided crimping, 2-wire combined crimping with 2 terminals, 2-wire combined crimping with 3 terminals, Reversible crimping, Non-reversible crimping, | |
| Control System | LCD display, single-chip microcontroller | |
| Detection Devices | Crimp test, wire shortage detection, air pressure test, paper winding inspection | |
| Auxiliary Equipment | Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank | |
| Operation Control | Wire feeding, cutting, stripping and movement are controlled via touch screen | |
| Optional | Pressure Measuring Device | Used to measure terminal crimping pressure |
| Application Range | Cutting Length | Leaving glue space 50-600mm |
| Stripping Length | 0.1-12mm | |
| Cutting Error | Manually adjustable | |
| Wire & Cable Type | Electric wire, high temperature cable, Teflon insulated cable (AWG18#-AWG24#) |
-
Equipped with a servo motor to deliver high precision, accurate positioning, and fast processing speeds, ensuring consistent quality in every operation.
-
Features encoder-based wire feeding compensation, allowing manual adjustments for precise stripping and feeding of wires with varying lengths.
-
Includes an integrated error monitoring system with real-time alerts displayed on a touch screen, simplifying fault detection and reducing downtime during production.
