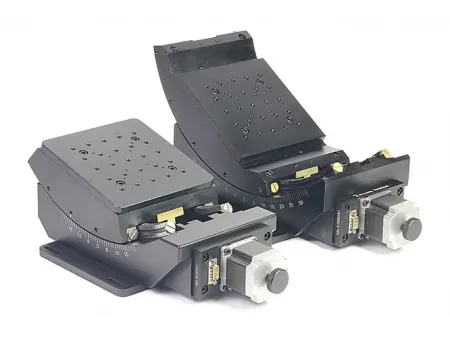

Motorized Goniometer
Request a Quote
7SGA3
Specifications
| Model | ||
| Adjustment range | ±10° | ±15° |
| Table size | 120mm×130mm | |
| Height of rotary axis | 180mm | 120mm |
| Height | 60mm | |
| Transmission ratio | 420:1 | 300:1 |
| Resolution (8 subdivision) | 0.0005357° | 0.00075° |
| Repeatability | 0.004° | |
| Standard motor | 42 stepper motor (1.8°) | |
| Maximum speed (2 subdivision) | 10/s | 15/s |
| Rated working current | 1.7A | |
| Maximum static torque | 0.4N ·m | |
| Horizontal load | 10kg | |
| Weight | 4kg | 3.5kg |
