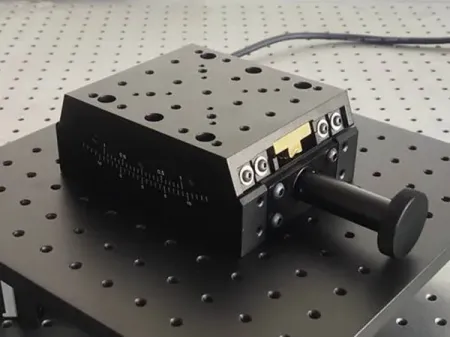

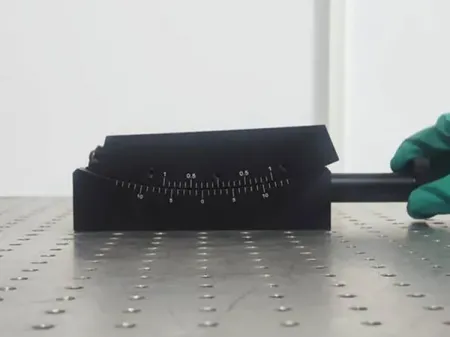

Angle adjustment platform
Features
  • Rotary adjustment capability.
  • Horizontal mounting surface for easy installation and fixing.
  • Designed for paired use, ensuring the rotary center remains the same point after alignment, suitable for orthogonal biaxial rotation adjustment.
  • Driven by paired worm gears and dovetail guide rails, ensuring smooth and precise movement.
  • Secured with a handwheel lock for safety and reliability.
Below are the types of goniometer stages we have produced.

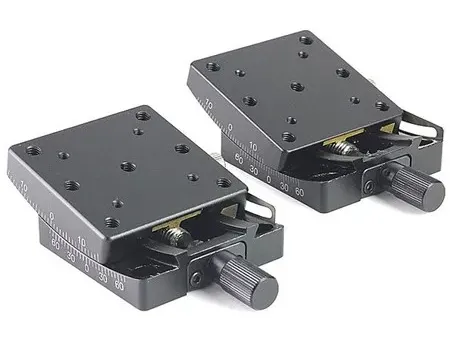

7SGM01 series goniometer stage
Model 7SGM0110 7SGM0115
Adjustment range ±10° ±15°
Height of rotary axis 100mm 76mm
Min. graduation
Min. reading 5' 5'
Load 5kg 5kg
Weight 0.31kg 0.31kg

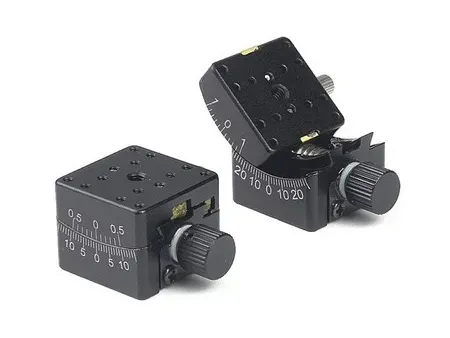

7SGM02 series goniometer stage
Model 7SGM0215 7SGM0230
Adjustment range ±15° ±30°
Height of rotary axis 32.5mm 12.5mm
Min. graduation
Min. reading 0.1° 0.2°
Load 2kg 2kg
Weight 41g 41g

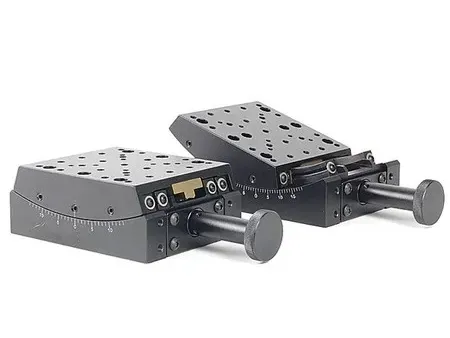

7SGM03 series goniometer stage
Model 7SGM0310 7SGM0315
Adjustment range ±10° ±15°
Table size 120mmx130mm
Height of rotary axis 180mm 120mm
Height 60mm
Horizontal load 40kg
Weight 3.5kg 3.3kg
