Custom integration of positioning stages
We offer over a dozen different models of positioning stage combinations, allowing customers to customize combinations according to their production or experimental needs. When assembling, it's important to consider the weight and load limits of each positioning stage, minimizing unnecessary eccentric weight.
Below are the types of positioning stage combinations we have produced.
- Number of dimensions: 3
- Travel range: Tx 50mm, Ty 50mm, Tz 50mm

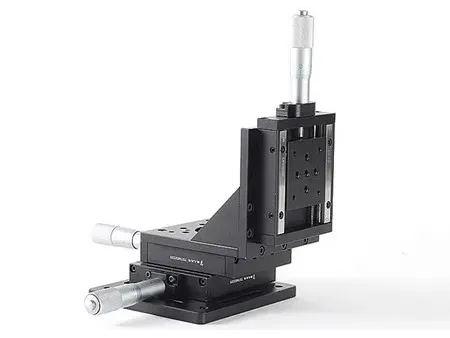

- Comprised of 3 7STA1050 and 1 7MBR6 right angle plate
- Number of dimensions: 2
- Travel range: Tx 13mm, Ty 13mm
- Number of dimensions: 2
- Travel range: Tx 13mm, Ty 13mm
- Number of dimensions: 2
- Travel range: Tx 25mm, Ty 25mm
- Number of dimensions: 2
- Travel range: Tx 25mm, Ty 25mm
- Number of dimensions: 2
- Travel range: Tx 75mm, Ty 75mm
- Number of dimensions: 3
- Travel range: Tx 13mm, Ty 13mm, Tz 13mm
- Number of dimensions: 3
- Travel range: Tx 13mm, Ty 13mm, Tz 13mm
- Number of dimensions: 3
- Travel range: Tx 25mm, Ty 25mm, Tz 25mm
- Number of dimensions: 3
- Travel range: Tx 25mm, Ty 25mm, Tz 25mm
- Number of dimensions: 3
- Travel range: Tx 25mm, Ty 25mm, Tz 5mm
- Number of dimensions: 3
- Travel range: Tx 25mm, Ty 25mm, θz 360°
- Number of dimensions: 3
- Travel range: θx ±10°, θy ±15°, θz 360°
- Number of dimensions: 3
- Travel range: Tx 25mm, Ty 25mm, Tz 60mm
- Number of dimensions: 3
- Travel range: Tx 13.5mm, θx±5°, θy±5°
- Number of dimensions: 3
- Travel range: Tx 13mm, Ty 13mm, θz 360°
- Number of dimensions: 3
- Travel range: Tx 13mm, Ty 13mm, Tz 5mm
- Number of dimensions: 4
- Travel range: Tx 25mm, Ty 25mm, θx±5°, θy±5°
- Number of dimensions: 4
- Travel range: Tx 13mm, Tz 5mm, θy±5°, θz 360°
- Number of dimensions: 4
- Travel range: Tx 25mm, Ty 25mm, θx±2.5°, θz±2.5°
- Number of dimensions: 5
- Travel range: Tx 13mm, Ty 13mm, Tz 13mm θx±15°, θy±30°
- Number of dimensions: 5
- Travel range: Tx 13mm, Ty 13mm, Tz 13mm θx±5°, θz±5°
- Number of dimensions: 5
- Travel range: Tx 13mm, Ty 13mm, Tz 13mm θy±5°, θz±5°
- Number of dimensions: 6
- Travel range: Tx 25mm, Ty 25mm, Tz 5mm θx±5°, θy±5° θz 360°
- Number of dimensions: 6
- Travel range: Tx 13mm, Ty 13mm, Tz 13mm, θx±5° θy±15° θz ±5°
- Number of dimensions: 6
- Travel range: Tx 25mm, Ty 25mm, Tz 5mm θx±10°, θy±15° θz 360°
