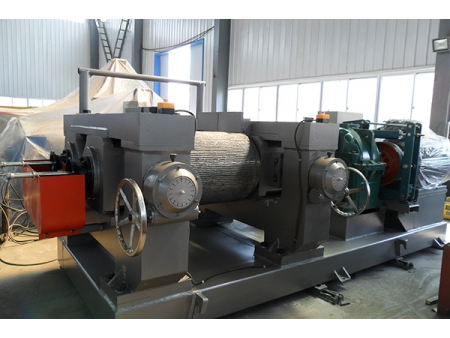

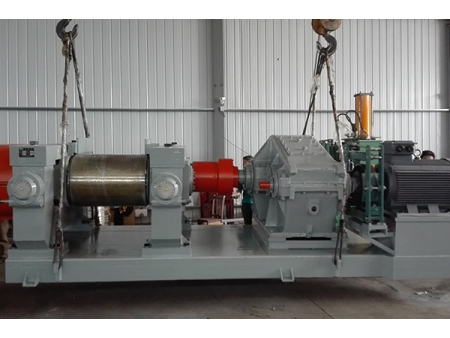

Rubber Cracker Mill

Request a Quote

View All: http://rubber-process.com/5-2-4-rubber-cracker-mill/index.html

Applications

The rubber cracker mill is used by waste tire recycling companies to crack rubber chunks into rubber particles so as to separate the rubber from steel cords and other components embedded in the tire’s body.

Parameters

Technical parameters	XKP-400
Front roller diameter (mm)	400
Rear roller diameter (mm)	400
Roller length (mm)	600
Front roller linear speed (m/min)	17.32
Roller speed ratio	1:1.38
Motor power （kw）	45

Technical parameters	XKP-450
Front roller diameter (mm)	450
Rear roller diameter (mm)	450
Roller length (mm)	650
Front roller linear speed (m/min)	23.2
Roller speed ratio	1:1.38
Motor power （kw）	55

Technical parameters	XKP-560
Front roller diameter (mm)	510
Rear roller diameter (mm)	560
Roller length (mm)	800
Front roller linear speed (m/min)	25.56
Roller speed ratio	1:1.30
Motor power （kw）	7590110132

Technical parameters	XKP-610
Front roller diameter (mm)	560
Rear roller diameter (mm)	610
Roller length (mm)	8001000
Front roller linear speed (m/min)	32.2
Roller speed ratio	1:1.35
Motor power （kw）	132160

Product description

We provide different types of rubber crackers according to production specifications.
High accuracy, wear-resistance and low noise.
Labyrinth seal, instead of oil seal, can avoid inconvenience of replacing framework oil seal while maintaining.
The rack, gland and base of open mill all adopt welding structure. Surface quality is guaranteed.
The adoption of an integrated base avoids severe vibration. In addition, such design does not necessarily need foundation. The machine can be moved freely on foundation surface.
Electronic control cabinet is placed on the base which brings convenience for adjustment and installment. Once connected with dynamic power, cooling water and lubrication oil for reducer, the mill can start working.

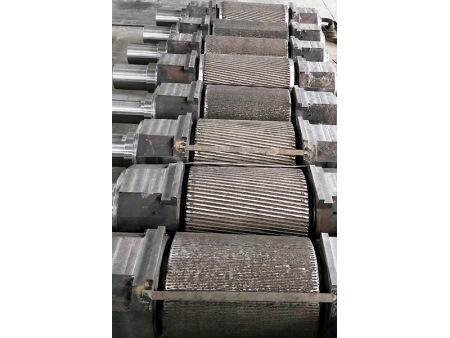

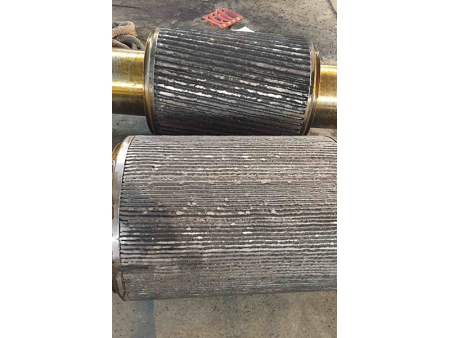

The rubber cracker’s roller has two types, cast steel roller and cast iron roller. The latter one is usually recommended, because it is more suitable for broken steel wire tire and convenient for welding and maintenance.
