Bagging Scale for Bagging & Palletizing System

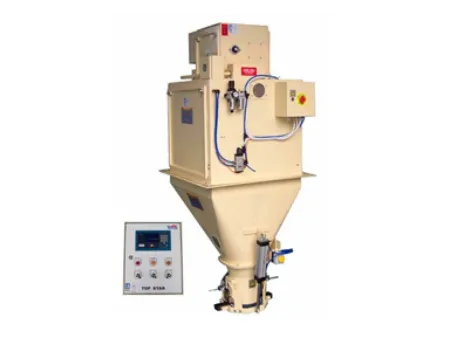

• Gravity Dosing Scale

Gravity Dosing Scale (Double Scale)

TCDZ50-B2

• Weighing range: 20-50kg
• Max. capacity: 15bags/min
• Accuracy: ≦±0.2%FS
• Power: 0.5kW
• Power supply: AC 220V 50Hz
• Control voltage: DC 24V

TCDZ30-B2

• Weighing range: 5-20kg
• Max. capacity: 15bags/min
• Accuracy: ≦±30g
• Power: 0.5 kW
• Power supply: AC 220V 50Hz
• Control voltage: DC 24V
• Suitable material: feed mill materials

Gravity Dosing Scale (Single Scale)

TCDZ50-B1

• Weighing range: 20-50kg
• Max. capacity: 10bags/min
• Accuracy: ≦±0.2%FS
• Power: 0.3kW
• Power supply: AC 3-phase 380V 50Hz
• Control voltage: DC 24V

TCDZ30-B1

• Weighing range: 5-20kg
• Max. capacity: 9bags/min
• Accuracy: ≦±30g
• Power: 0.2kW
• Power supply: AC 3-phase 380V 50Hz
• Control voltage: DC 24V
• Suitable material: feed mill materials
