Hydraulic Power Pack
Medium Size (Max. Power 670KW)
500P/600P/800P/1000P
Hydraulic power unit for operating medium size hydraulic foundation equipment

Introducing our medium size hydraulic power pack, a well-designed power unit providing reliable hydraulic support for medium-sized projects. Perfectly suited for medium excavators, rollers, concrete pumps, and other construction machinery, it delivers efficient and powerful hydraulic output.

Applications

Ideal for medium-scale construction projects, our power packs offer robust hydraulic support for excavating, compacting, and concrete pumping tasks. Also, they are suitable for medium excavators, rollers, concrete pumps, and various engineering operations.

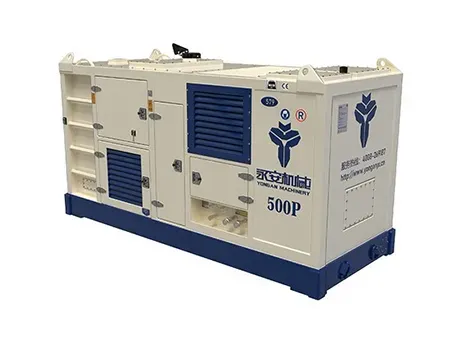

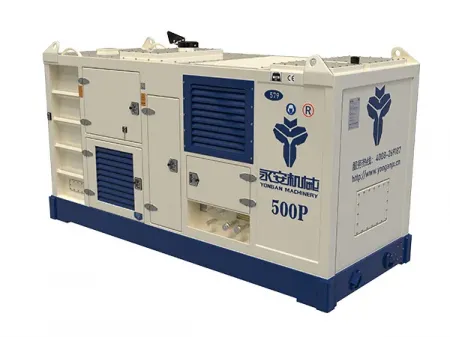

Model 500P
Generator Type Cummins QSM11-C400 -
Maximum Power 298 kW 400 hp
Maximum Frequency 2100 rpm -
Maximum Working Pressure 320 bar 4641 psi
Maximum Oil Flow 500 L/min 132 US gpm
Fuel Tank Volume 500 liters 132 US gallons
Hydraulic Oil Tank Volume 1600 liters 422 US gallons
Weight 6000 kg 13227 lbs
Control System Control panel Remote control
Dimensions (L×W×H) 3900×1520×2100 mm
Suitable for

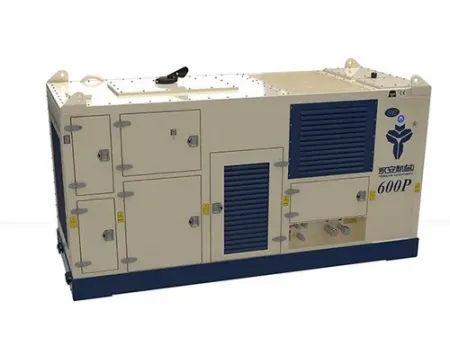

Model 600P
Generator Type Cummins QSZ13-C550 -
Maximum Power 410 kW 550 hp
Maximum Frequency 1900 rpm -
Maximum Working Pressure 320 bar 4641 psi
Maximum Oil Flow 630 L/min 166 US gpm
Fuel Tank Volume 600 liters 158 US gallons
Hydraulic Oil Tank Volume 2000 liters 528 US gallons
Weight 8200 kg 18077 lbs
Control System Control panel Remote control
Dimensions (L×W×H) 4550×1820×2400 mm
Suitable for

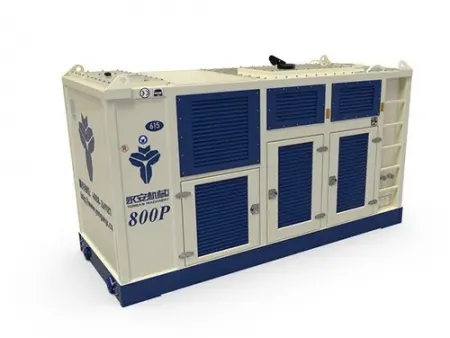

Model 800P
Generator Type TAD1643VE-B -
Maximum Power 565 kW 768 hp
Maximum Frequency 1900 rpm -
Maximum Working Pressure 320 bar 4641 psi
Maximum Oil Flow 800 L/min 211 US gpm
Fuel Tank Volume 600 liters 158 US gallons
Hydraulic Oil Tank Volume 2200 liters 581 US gallons
Weight 9000 kg 19841 lbs
Control System Control panel Remote control
Dimensions (L×W×H) 4550×1820×2400 mm
Suitable for

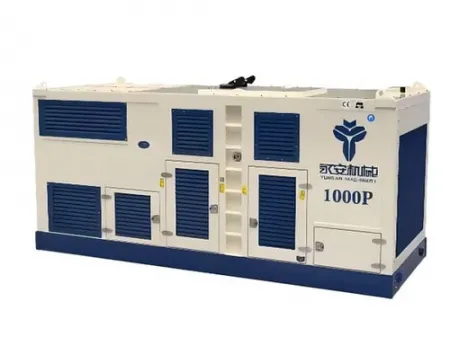

Model 1000P
Generator Type Weichai 6M33G915E304 -
Maximum Power 670 kW 915 hp
Maximum Frequency 1900 rpm -
Maximum Working Pressure 320 bar 4641 psi
Maximum Oil Flow 1000 L/min 264 US gpm
Fuel Tank Volume 1100 liters 290 US gallons
Hydraulic Oil Tank Volume 2700 liters 713 US gallons
Weight 10500 kg 234148 lbs
Control System Control panel Remote control
Dimensions (L×W×H) 5650×1920×2550 mm
Suitable for
