Hydraulic Power Pack
Small Size (Max. Power 264KW)
40P/200P/300P/400P
Hydraulic power unit for operating small size hydraulic foundation equipment

Introducing our small size hydraulic power packs, your efficient hydraulic power solutions for various small-scale machinery and tools. These portable power packs provide stable and reliable power output, making them ideal for small construction projects.

Applications

Perfect for small-scale construction, roadwork, repair, and maintenance projects, our power packs offer reliable support for small excavators, rollers, hydraulic tools, and more.

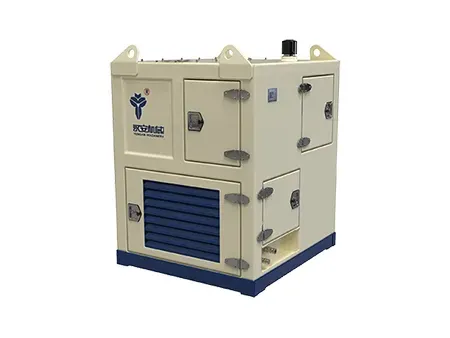

Model 40P
Generator Type YE3-180L-4 -
Maximum Power 22 kW -
Maximum Frequency 1470 rpm -
Maximum Working Pressure 300 bar 4351 psi
Maximum Oil Flow 40 L/min 10.5 US gpm
Fuel Tank Volume 460 liters 121.5 US gallons
Hydraulic Oil Tank Volume 250 liters 66 US gallons
Weight 1500 kg 3307 lbs
Control System Control panel Remote control
Dimensions (L×W×H) 1312×1212×1650 mm
Suitable for

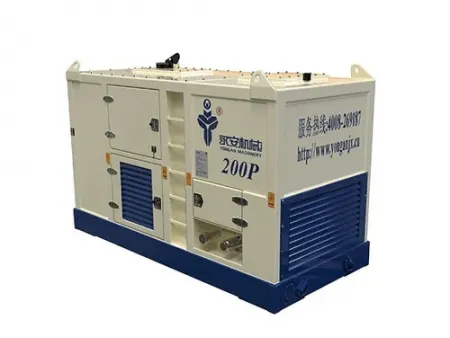

Model 200P
Generator Type Cummins 6BTAA5.9-C205 -
Maximum Power 153 kW 205 hp
Maximum Frequency 2200 rpm -
Maximum Working Pressure 320 bar 4641 psi
Maximum Oil Flow 200 L/min 52 US gpm
Fuel Tank Volume 400 liters 105 US gallons
Hydraulic Oil Tank Volume 800 liters 211 US gallons
Weight 3500 kg 7716 lbs
Control System Control panel Remote control
Dimensions (L×W×H) 3300×1520×2050 mm
Suitable for

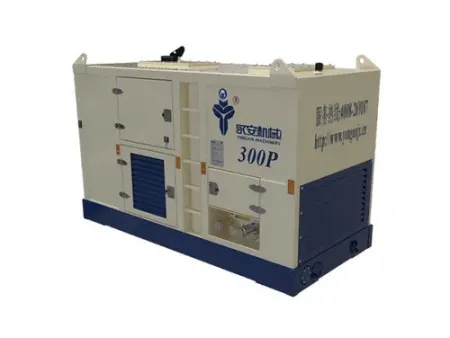

Model 300P
Generator Type Cummins 6CAT8.3-C260 -
Maximum Power 194 kW 260 hp
Maximum Frequency 2000 rpm -
Maximum Working Pressure 320 bar 4641 psi
Maximum Oil Flow 300 L/min 79 US gpm
Fuel Tank Volume 450 liters 118 gallons
Hydraulic Oil Tank Volume 1200 liters 317 gallons
Weight 5000 kg 11023 lbs
Control System Control panel Remote control
Dimensions (L×W×H) 3300×1520×2050 mm
Suitable for

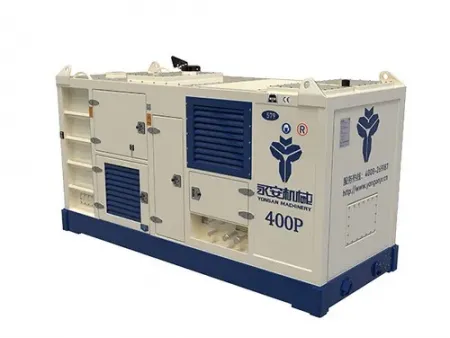

Model 400P
Generator Type Cummins QSL8.9-C360 -
Maximum Power 264 kW 360 hp
Maximum Frequency 2200 rpm -
Maximum Working Pressure 320 bar 4641 psi
Maximum Oil Flow 400 L/min 105 US gpm
Fuel Tank Volume 500 liters 132 US gallons
Hydraulic Oil Tank Volume 1400 liters 369 US gallons
Weight 6000 kg 13227 lbs
Control System Control panel Remote control
Dimensions (L×W×H) 3900×1520×2100 mm
Suitable for
