Hydraulic Power Pack
Large Size (Max. Power 1915KW)
1200P/1600P/2600P/3000P/3500P
Hydraulic power unit for operating large size hydraulic foundation equipment

Introducing our large size hydraulic power packs, powerful and efficient units designed for large-scale projects. Featuring advanced hydraulic systems, they provide stable and robust power support for large excavators, rollers, concrete pumps, and more.

Applications

Ideal for complex operations in large-scale excavation, compaction, and concrete pumping.

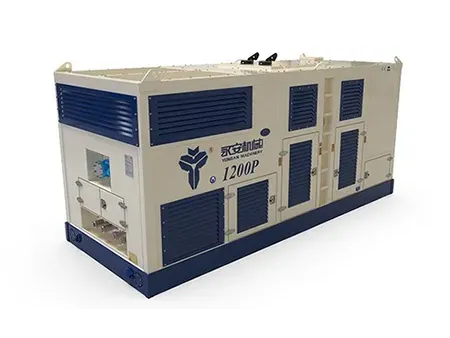

Model 1200P
Generator Type Cummins KTA38-P1200 -
Maximum Power 896 kW 1200 hp
Maximum Frequency 1800 rpm -
Maximum Working Pressure 320 bar 4641 psi
Maximum Oil Flow 1200 L/min 317 US gpm
Fuel Tank Volume 1000 liters 264 US gallons
Hydraulic Oil Tank Volume 4200 liters 1109 US gallons
Weight 20000 kg 44092 lbs
Control System Control panel Remote control
Dimensions (L×W×H) 6050×2370×2820 mm
Suitable for

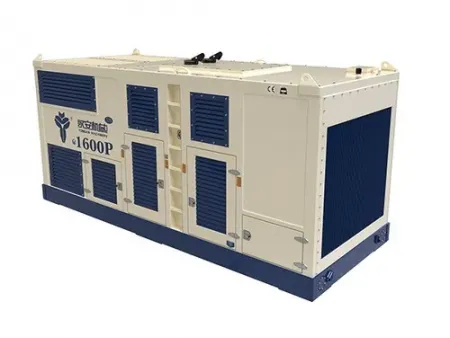

Model 1600P
Generator Type Cummins KTA38-C1350 -
Maximum Power 1007 kW 1350 hp
Maximum Frequency 1900 rpm -
Maximum Working Pressure 320 bar 4641 psi
Maximum Oil Flow 1600 L/min 422 US gpm
Fuel Tank Volume 1000 liters 264 US gallons
Hydraulic Oil Tank Volume 4200 liters 1109 US gallons
Weight 20000 kg 44092 lbs
Control System Control panel Remote control
Dimensions (L×W×H) 6050×2370×2820 mm
Suitable for

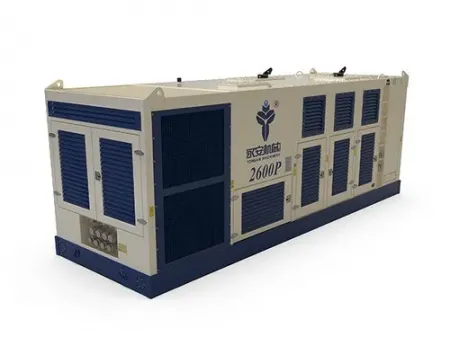

Model 2600P
Generator Type Cummins KTTA50-C2000 -
Maximum Power 1492 kW 2000 hp
Maximum Frequency 1900 rpm -
Maximum Working Pressure 320 bar 4641 psi
Maximum Oil Flow 2600 L/min 687 US gpm
Fuel Tank Volume 1400 liters 370 US gallons
Hydraulic Oil Tank Volume 5200 liters 1373 US gallons
Weight 24500 kg 54013 lbs
Control System Control panel Remote control
Suitable for
Model 3000P
Generator Type Cummins KTA50-C2250 -
Maximum Power 1679 kW 2250 hp
Maximum Frequency 1900 rpm -
Maximum Working Pressure 320 bar 4641 psi
Maximum Oil Flow 3000 L/min 792 US gpm
Fuel Tank Volume 2200 liters 581 US gallons
Hydraulic Oil Tank Volume 4600 liters 1215 US gallons
Weight 30000 kg 66139 lbs
Control System Control panel Remote control
Dimensions (L×W×H) 7800×2370×2800 mm
Suitable for

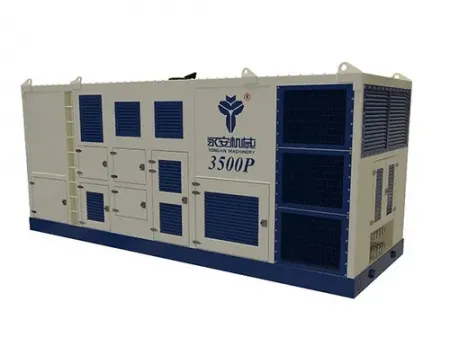

Model 3500P
Generator Type Cummins QSK60-G4 -
Maximum Power 1915 kW 2567 hp
Maximum Frequency 1500 rpm -
Maximum Working Pressure 320 bar 4641 psi
Maximum Oil Flow 3500 L/min 924 US gpm
Fuel Tank Volume 1420 liters 375 US gallons
Hydraulic Oil Tank Volume 6400 liters 1691 US gallons
Weight 36000 kg 79366 lbs
Control System Control panel Remote control
Dimensions (L×W×H) 8100×2770×3000 mm
Suitable for
