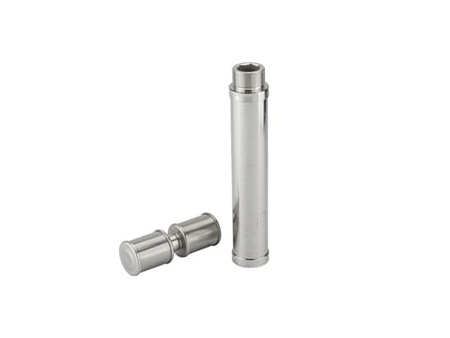

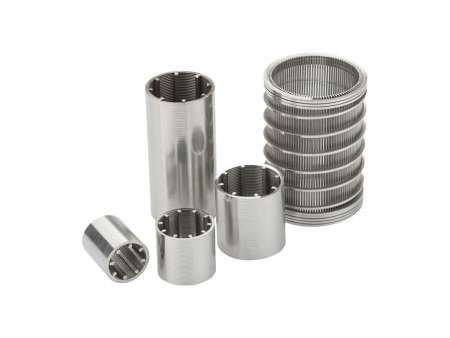

Stainless Steel Wedge Wire Filter Cartridge, PHSV Series
Request a Quote
Our stainless steel wedge wire filter cartridges are meticulously crafted through specialized welding, combining reinforcement bars and V-shaped wires, resulting in a structurally robust yet simple design with superior strength, hardness, wear resistance, and uniform gap distribution. Our cartridges offer seamless flow, easy cleaning, and backwashing capabilities, making them the ideal choice for solid-liquid separation involving larger rigid particles.
Materials of Construction
| Filtration Layer | 316L/304/321 |
| Filter Medium | 316L/321/304 stainless steel and other customizable materials |
Specifications
| Outside Diameter (mm) | 25.4 | 33 | 38 | 50 | 57 | 76 | 89 | 105 | 117 | 130 | 143 |
| No. of Reinforcement Bars | 8 | 8 | 8 | 12 | 12 | 18 | 20 | 24 | 28 | 30 | 34 |
| Surface Wire Width (mm) | 1/1.5 | 1/1.5 | 1/1.5 | 1/1.5 | 1/1.5 | 1/1.5 | 1/1.5 | 1/1.5 | 1/1.5 | 1/1.5 | 1/1.5 |
| Micron Rating | 20/25/30/50/60/100/150μm | ||||||||||
| Surface Wire Width (mm) | 316L/304/321 | ||||||||||
| Diameter Options | 25.4, 33, 38, 50, 57, 76, 89, 105, 117, 130, 850mm (Customizable) | ||||||||||
Features
- High mechanical strength for handling substantial pressure differentials
- Uniform filtration gaps that promote even filter cake formation, aiding in efficient backwashing
- Wedge-shaped gaps enhance backwashing efficiency
- Resistant to pressure, temperature, aging, and corrosion, suitable for various fluids
- Nearly two-dimensional mesh design minimizes particle accumulation dead zones, enhancing backwashing effectiveness
Applications
- Filtration of viscous liquids
- Prefiltration of juices and beverages
- Filtration of strong polar solvents
- Filtration of oxidative liquids,
- Syrup filtration
- Filtration of corrosive liquids
