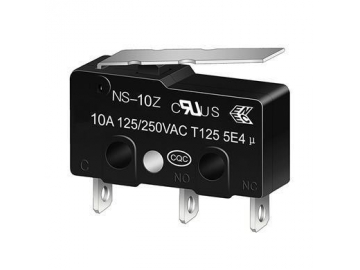

NS-5Z/10Z Micro Switch
Request a Quote
- NS-5Z micro switch
- NS-10Z micro switch
Rated value
| Model | Rated voltage | Resistive load |
| AC125V | 10A | |
| AC250V | 10A | |
| AC125V | 5A | |
| AC250V | 5A |
Connector specification
| Item | Mode | NS-10Z | NS-5Z |
| Connector | Specification | Rivet | |
| Material | Silver alloy | ||
| Interval（standard value） | 0.5mm | ||
| Minimum applicable load | DC5V 160mA | ||
Security certification
| Certification | Rated voltage | NL-10Z | NL-5Z |
| CQC(GB15092.1) | AC125V | 10A | 5(2)A |
| AC250V | |||
| UL(UL61058,CSA-C22.2 NO.61058-1) | AC125V | - | 5A |
| AC250V | 10A | 5A | |
| DC30V | - | 5A | |
| ENEC(EN 61058-1) | AC125V | - | 5A |
| AC250V | 10A | 5A | |
| DC30V | - | 5A |
Exterior dimension /action feature
| Action feature | Mode | NS-10Z | NS-5Z | NS-5Z-F |
| Actuating force | OF Maximum | 0.49N | 0.49N | 0.16N |
| Restoring force | RF Minimum | 0.25N | 0.25N | 0.04N |
| Pre-stroke | PT Maximum | 1.00mm | 1.2mm | 1.2mm |
| Post-stroke | OT Minimum | 1.00mm | 0.8mm | 0.8mm |
| Response differential stroke | MD Maximum | 13.6mm | ||
| Action position | OP | 8.8± 0.8mm | ||
