Request a Quote

Hardness Testing Machine

Request a quote

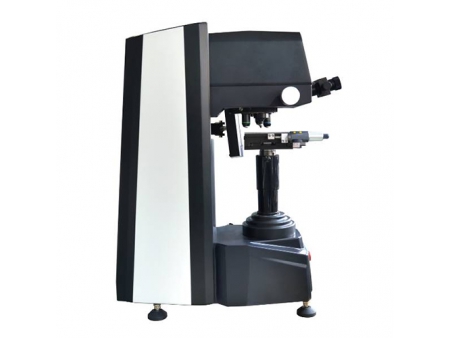

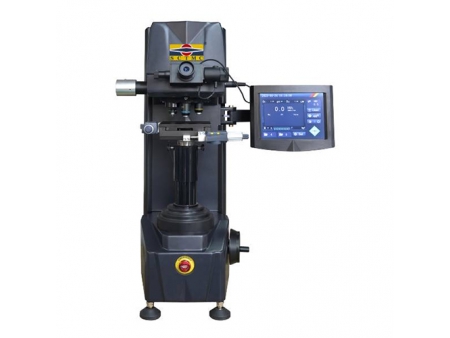

Our digital Vickers hardness tester offers precision and efficiency in hardness testing. Built with a sturdy aluminum alloy die-cast body, it combines durability with a sleek design. The direct-drive loading mechanism ensures stable force application, enhancing the accuracy and efficiency of testing procedures. The intuitive touchscreen interface provides clear, real-time display of essential metrics such as test force, indentation length, dwell time, conversion scales, and more.

Request a quote
Features
  • The lifting screw, crafted from specially treated materials, achieves a hardness of 35-40HRC after heat treatment. This, combined with a worm gear and worm structure, ensures smooth and stable movements
  • High-quality imported motors for both loading and turret functions ensure quiet, reliable operation, maintaining a compact and efficient design
  • The modular cover design simplifies maintenance and servicing, allowing for easy access and upkeep
  • Features three objectives that participate in measurements, with automatic recognition and switching between the objectives and the indenter
  • Utilizes durable LED cold light sources, providing consistent lighting for tests
  • Supports both Vickers and Knoop testing modes, allowing for real-time conversion and selection of various hardness scales.
  • Users can set upper and lower limits, with alerts for measurements that exceed these limits
  • Automatically saves hardness test results in real-time, with options for data classification, deletion, and automatic calculation of maximum, minimum, and average values. Features an RS232 interface for easy computer connectivity and data export
Features

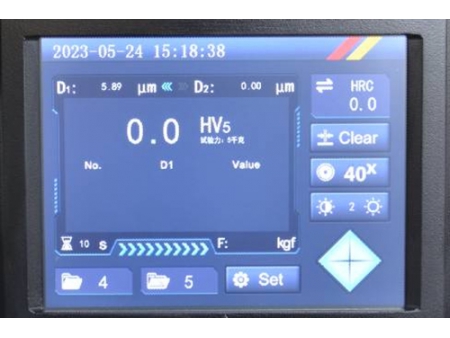

  • Operation interface

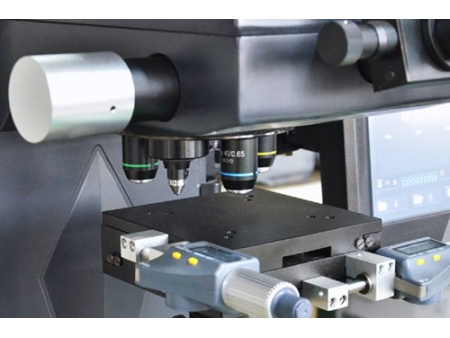

  • LED Light, Single Indenter, Three Objective Turret
Applications

Ideal for testing the hardness of a variety of materials, such as ferrous and non-ferrous metals, IC wafers, laminated metals, glass, ceramics, agate, gemstones, and thin plastics. Additionally, it is perfect for assessing the hardness depth and gradient of carburized and hardened layers.

Technical Data
Model
QHVT-10Z
QHVT-50Z
Test Force kgf 0.3kgf, 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf, 20kgf, 30kgf, 50kgf
N 2.94N, 4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N 4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N, 196N, 294N, 490N
Test Mode HV/HK
Test Range 1HV~3000HV
Hardness Resolution 0.1HV
Loading Method Automatic (Loading/Dwell/Unloading)
Turret Automatic shifting
Data Output RS232 interface
Hardness Reading 8 inch color touch screen, automatic data storage
Conversion Scale HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRHW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HV, HK, HS, HBS, HBW, HLD
Data Storage 6 folders, each 1000 sets data
Eyepiece 10× digital measuring eyepiece
Objective 10×, 20×, 40×
Total Magnification 100×, 200×, 400×
Effective Field of View 10×: 800μm, 20×: 400μm, 40×: 200μm
Min. Measuring Unit 10×: 0.25μm, 20×: 0.13μm, 40×: 0.06μm
Dwell Time 0-99s
Light Source LED (cold light source)
Digital X-Y Test Table Size: 120×120mm; Travel: 25×25mm; Resolution: 0.001mm
Max. Sample Height 175mm
Throat Depth 140mm
Power Supply AC220V, 50Hz
Execute Standard GB/T 4340, ISO 6507, ASTM E92, JIS Z2244
Dimension 495×575×670mm
Net Weight 35kg
Optional Accessories

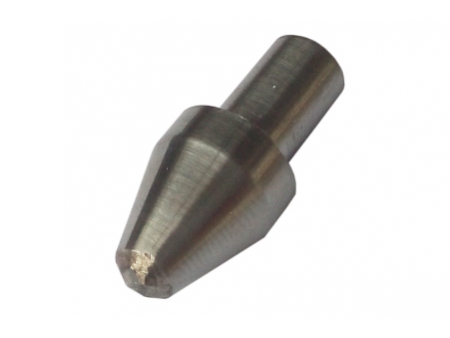

  • Indenter

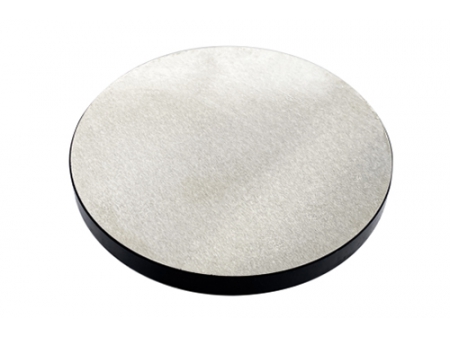

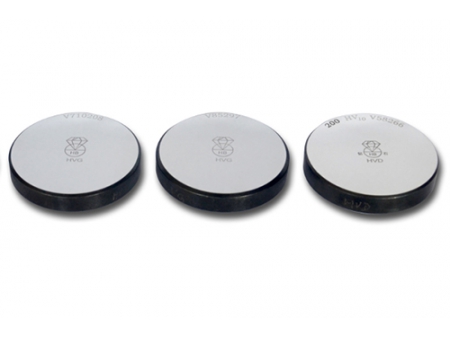

  • Hardness Test Blocks
  • Flat Anvils

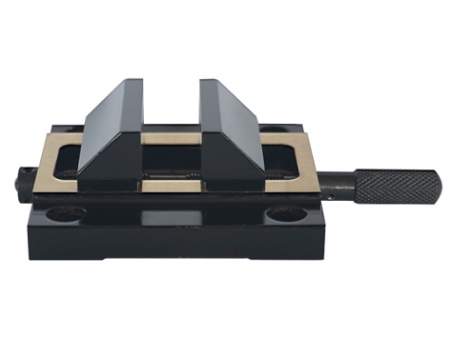

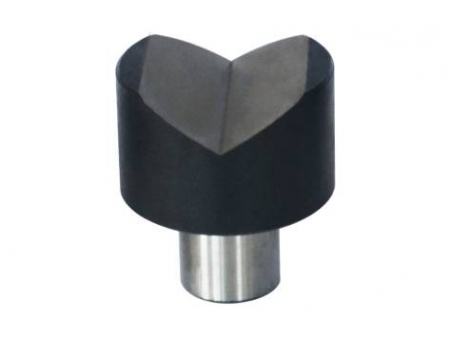

  • V Anvils

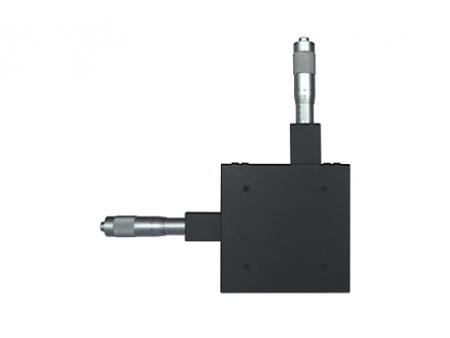

  • XY Stages
  • Flat Clamping Shield

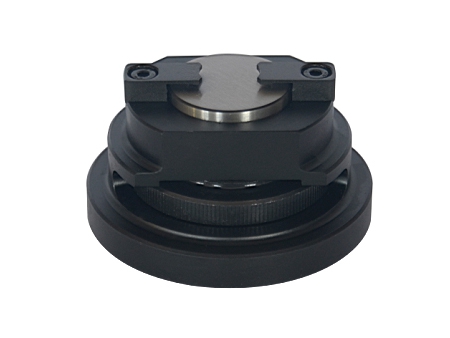

  • Thin Sheet Clamping Shield
  • Clamping Table

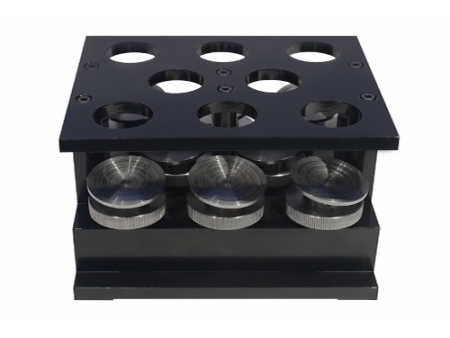

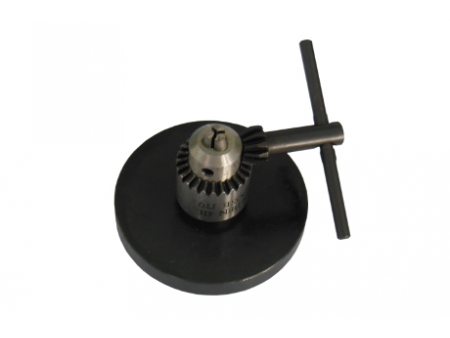

  • Sample Holders

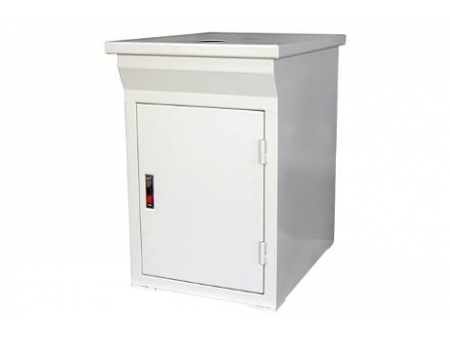

  • Floor Stand
