Concealed Fastener Metal Wall Panels

Request a Quote

Website: http://bltbuilding.com/5-3-concealed-fastener-metal-wall-panels.html

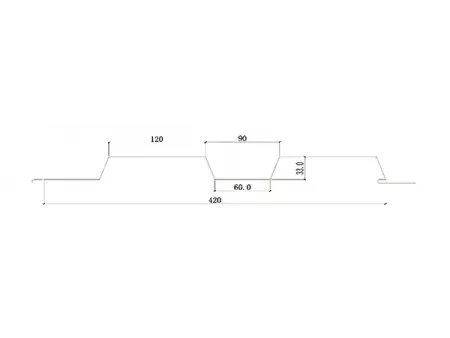

YX33-420

33mm depth×420mm width trapezoidal cladding sheets for facades or exterior walls of various types of buildings

Effective cover width: 420mm
Overall width of sheet: 500mm
Thickness: 0.4mm-1.0mm
Length: Customizable
Material: Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet

Concealed fastener wall cladding sheets combine a trapezoidal profile design with a hidden fastening system that leaves the surface free of visible screws. It can be installed either horizontally or vertically, delivering a clean, modern look while also supporting long service life of over 50 years. Made from aluminum-magnesium-manganese alloy, the panels resist harsh weather, maintain their appearance, and require minimal maintenance.

Applications

Suitable for industrial facilities, commercial complexes, office buildings, hotels, shopping malls, and exhibition centers.

Highlights & Applications

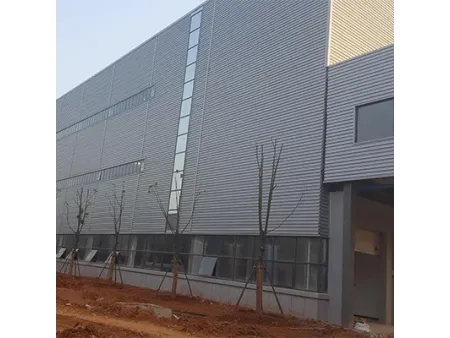

Used on office and commercial façades, as well as industrial workshop exteriors
Supported by galvanized steel profiles (≥1.5 mm) with spacing not greater than 1200 mm
Can be mounted over concrete walls or steel-framed structures
Installed horizontally or vertically with a concealed system that locks panels from bottom to top and left to right, leaving a smooth surface without visible screws

Components

Façade cladding
Air barrier
Insulation layer
Purlin
Liner panel

Specifications

Model	YX33-420
Effective cover width	420mm
Overall width of sheet	500mm
Thickness	0.4mm-1.0mm
Length	Customizable
Type of cladding	Concealed fastener wall panel
Installation	Horizontal installation, vertical installation
Material	Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet
Metal sheet suppliers	Baosteel, BlueScope, Yieh Phui, Wah Tung, Alliance Steel, etc.
Color	Standard color custom color
Surface coating	PE/HDP/PVDF, etc.
Lifespan	At least 50 years
Production process	Roll forming
Mounting accessories included	A full range of shear studs, self-tapping screws, clamps, etc.
Remarks	1. Professional installation guidance is available to ensure proper assembly 2. Other sizes or customized designs can be provided upon request

Features

The panels can be installed either horizontally or vertically; the concealed fastening system keeps the surface smooth and free from visible screws.
A trapezoidal rib profile creates a strong three-dimensional effect, adding depth and character to the façade.
Thanks to their vertical installation the water drainage is improved; while highlighting the building’s solid architectural style.
Made with aluminum-magnesium-manganese alloy, the panels provide resistance to weather, corrosion, and aging, ensuring long-term reliability.
Their lightweight structure makes handling and installation easier, while a wide range of colors allows architects to achieve consistent or contrasting design effects.
