Metal Wall Panels

Request a Quote

Website: http://bltbuilding.com/5-1-exposed-fastener-metal-wall-panels.html

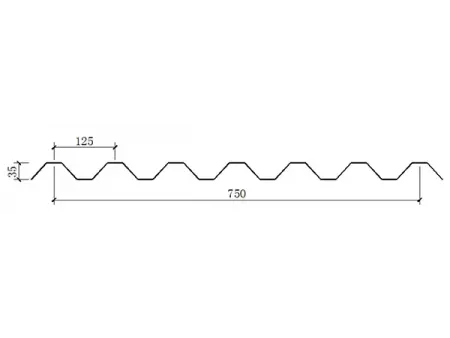

YX35-125-750

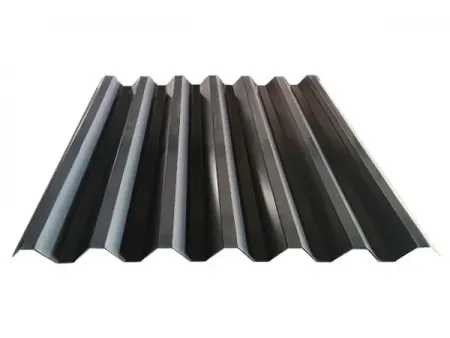

35mm depth×750mm width trapezoidal cladding sheets for facades or exterior walls of various types of buildings

Effective cover width: 750mm
Overall width of sheet: 1000mm
Thickness: 0.4mm-1.0mm
Length: Customizable
Material: Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet

Facade cladding sheets with a trapezoidal rib profile create a uniform surface and give buildings a clean, appealing look. With a 1000 mm width and thickness options from 0.4 mm to 1.0 mm, they can be customized for different projects. Made from coated aluminum-magnesium-manganese steel, they offer strong weather resistance and maintain a neat finish with little maintenance.

Applications

Suitable for industrial facilities, commercial buildings, office towers, hotels, shopping centers, and exhibition halls.

Specifications

Model	YX35-125-750
Effective cover width	750mm
Overall width of sheet	1000mm
Thickness	0.4mm-1.0mm
Length	Customizable
Type of cladding	Exposed fastener wall panel
Installation	Horizontal installation, vertical installation
Material	Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet
Metal sheet suppliers	Baosteel, BlueScope, Yieh Phui, Wah Tung, Alliance Steel, etc.
Color	Standard color custom color
Surface coating	PE/HDP/PVDF, etc.
Lifespan	At least 50 years
Applications	Architectural cladding for walls and roofs
Mounting accessories included	A full range of shear studs, self-tapping screws, clamps, etc.
Remarks	1. Professional installation guidance is available to ensure proper assembly 2. Other sizes or customized designs can be provided upon request

Features

The uniform trapezoidal rib pattern provides a consistent and modern look for exterior walls.
The panels can be produced in different thicknesses to meet specific building requirements.
They allow both vertical and horizontal installation for greater design flexibility.
A wide range of available colors makes it easy to create customized façade styles.
The coated metal surface ensures durability against corrosion, fading, and weather exposure.
The panels are self-cleaning and require minimal maintenance to keep their good appearance over time.
Thanks to their lightweight design, their installation is easy which reduces construction costs.
