Optical inspection machine with for inspection and sorting of headed fasteners
Optical inspection machine with for inspection and sorting of headed fasteners

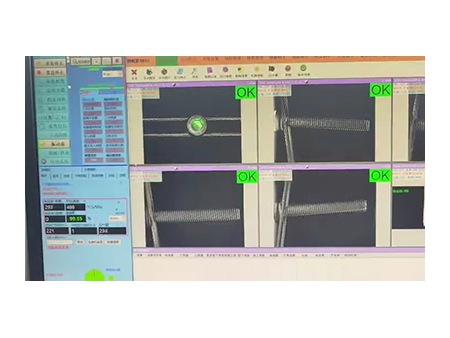

The headed fastener optical sorting machine utilizes advanced image recognition technology integrated with a steel wire transmission system to provide automated sorting solutions. This optical inspection machine is specifically designed for items that are not suitable for upright positioning and need to be suspended during inspection.

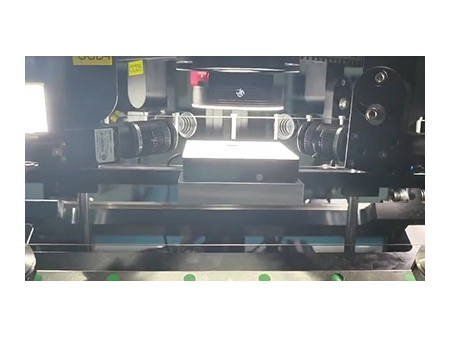

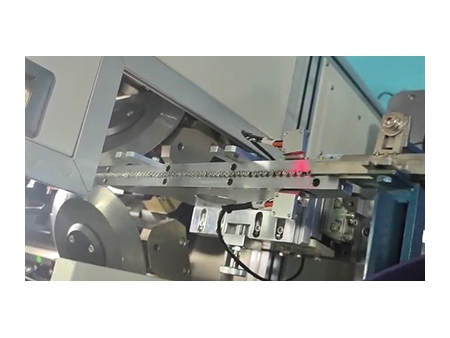

The steel wire transmission system facilitates the rapid alignment of products, enabling full inspection to ensure all aspects of the product are evaluated. This comprehensive inspection capability ensures that each product is accurately assessed for quality, dimensions, and any potential defects, leading to reliable sorting outcomes. Its automated processes significantly reduce manual labor, improve inspection accuracy, and enhance overall production efficiency, making it an ideal choice for industries requiring stringent quality control.

Applicable Parts

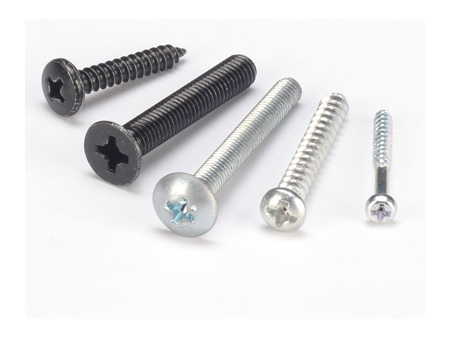

Screws
Automotive screws

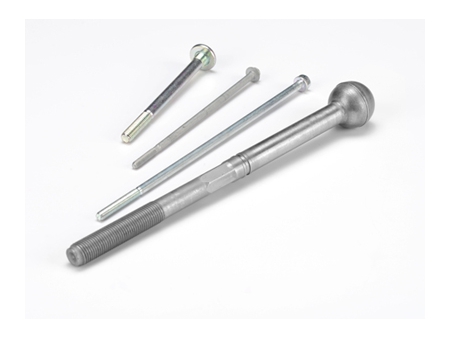

Bolts
Screws

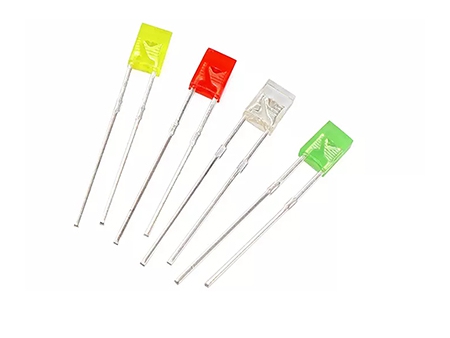

LEDs
Details
Specifications
  • Applicable item size: 5-40mm
  • Sorting precision: ±0.01mm
  • Inspection speed: 600-1200pcs/min
  • Air pressure: 7 kg/cm²
  • Voltage: 220V
  • Rated power: 3000W
  • Digital camera: industrial camera
  • Machine weight: 650kg
  • Machine dimensions (L×W×H): 1350×1100×1800mm
Features
  • Capable of full-range inspection of both the appearance and dimensions of workpieces, ensuring thorough quality control.
  • Operates at a high speed with the ability of inspecting 600 to 1200 pieces per minute, significantly enhancing productivity.

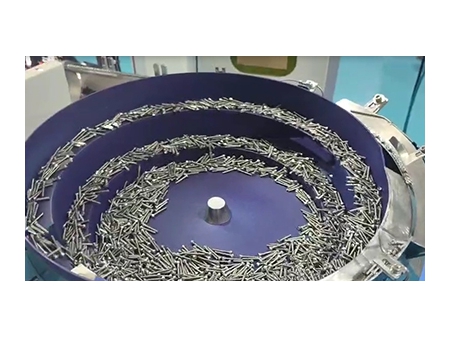

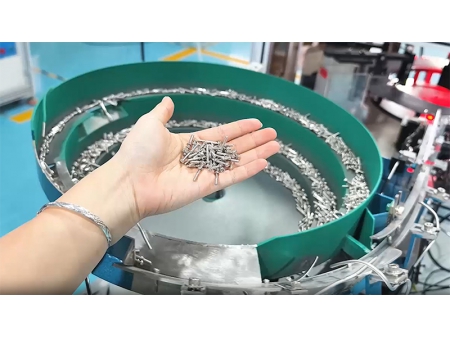

  • Switching between different product types is simple, requiring only adjustments to the width of the steel wire track. The universal design of the vibration bowl enhances its adaptability and ease of operation, making it user-friendly and efficient.
Applications
  • Crush Detection
  • Cross Recess Excess Material
  • Major,Minor Diameter,Pitch,Thread Angle

Fastener inspection

  • Special Hardware
  • Special Nut

Special hardware inspection

  • Multi-width
  • Multi-Height
  • Broken Pin,Groove Depth

Shaft inspection
