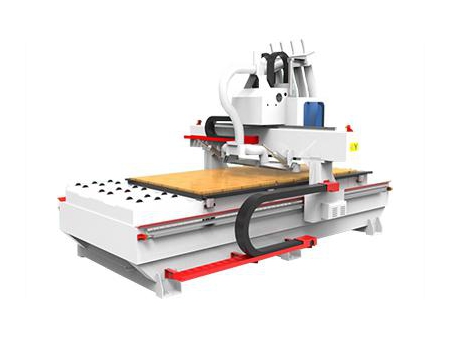

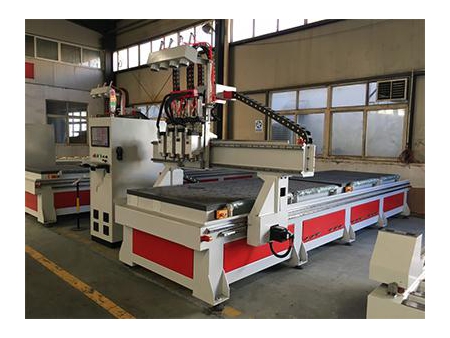

M1325AS3 Series CNC Router/CNC Mill
Request a Quote
The CNC router is designed for wood processing and will manufacture versatile and complex products. It can automatically finish a variety of processes, including milling, drilling, and cutting. This cost-effective CNC mill is equipped with three independent 3.5KW spindles.
Materials Cut
Board, fiberboard, particle board, acrylic, etc.
Applications

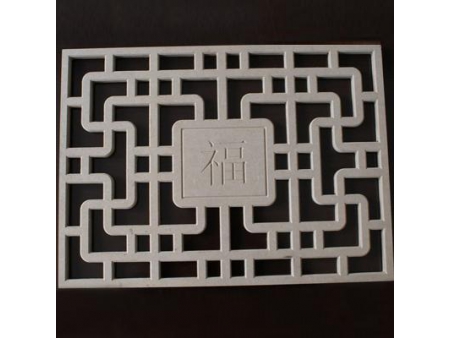

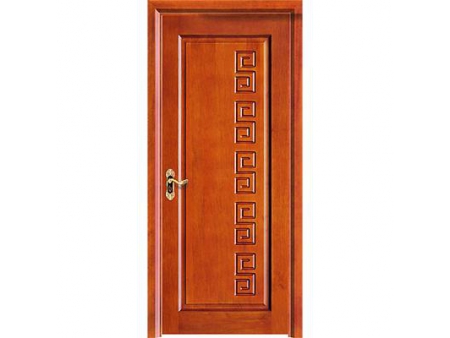

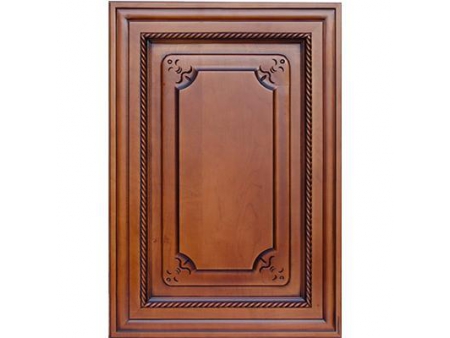

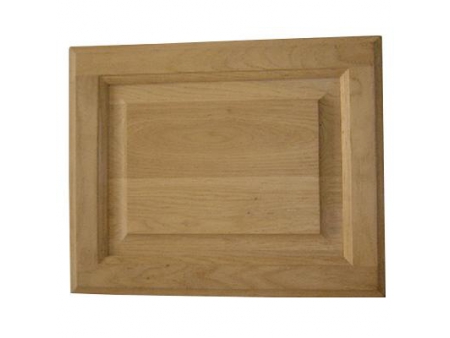

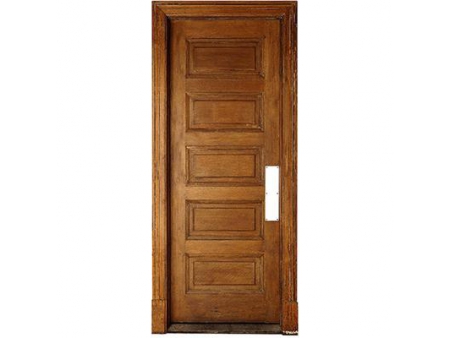

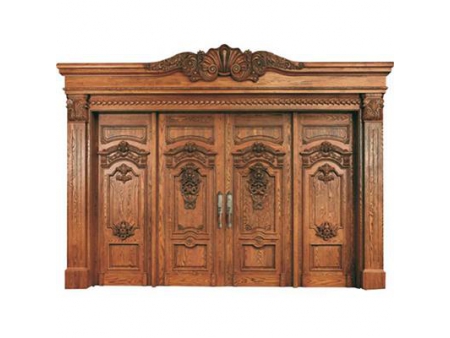

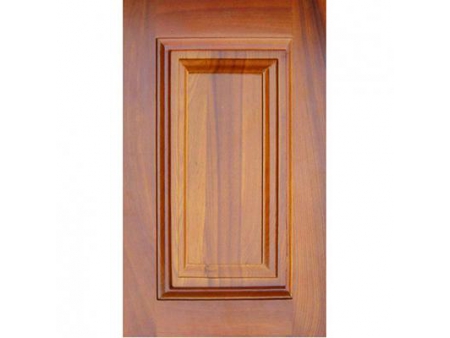

- Wood working industry: door, screen, three-dimensional wavy plate, window, furniture
- Advertising industry: manufacturing advertising signs, plastic models, cutting acrylic plates, other advertising decorations

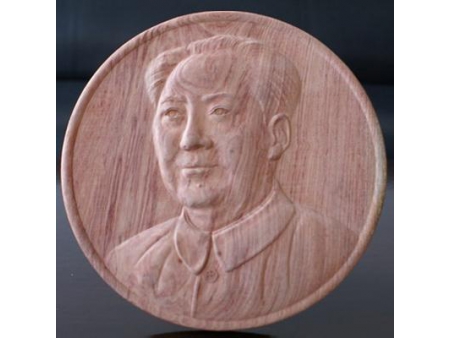

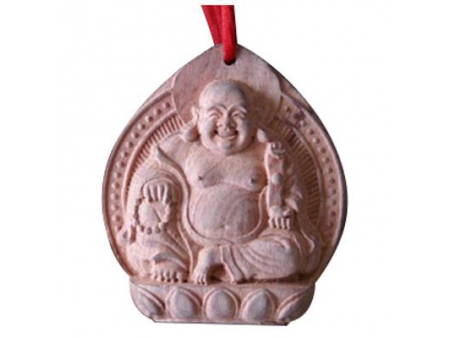

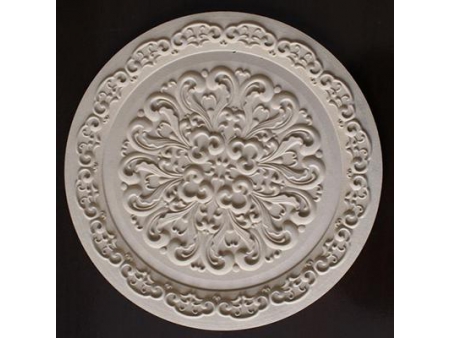

- Other industry: engraving handcrafted gifts and realizing shadow carvings, embossing effects.
Features

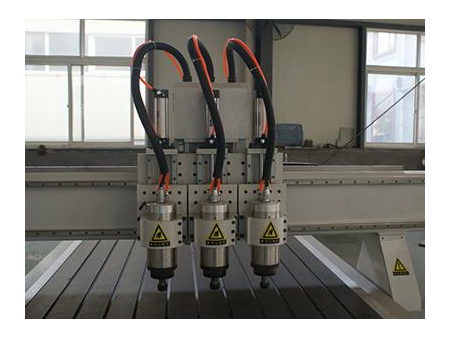

- Three pneumatic tool change spindles can hold four different tools. The tools can be used alternately and changed automatically to significantly improve processing efficiency.

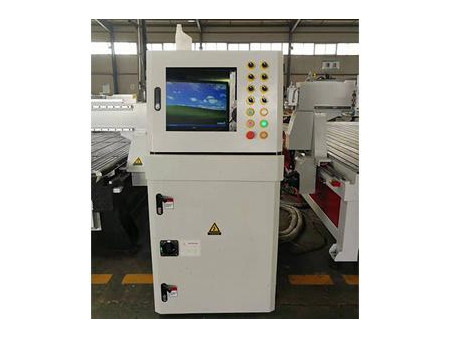

- The CNC mill is equipped with an independent control cabinet and Weihong 95A-3S control system. It features a stable and easy operation and performance.

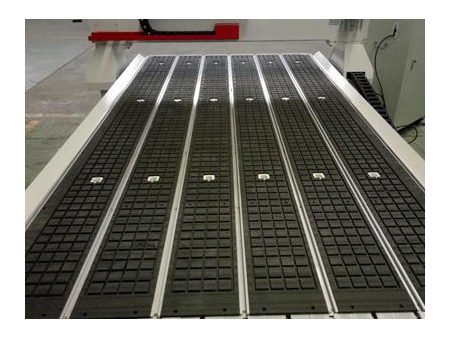

- The vacuum table with a T-slot can fix workpieces of different dimensions both partially and firmly. It features a quick load and convenient use.
Parameters
| Model | F5-M1325AS3 | F5-M1631AS3 | F5-M2131AS3 | F5-M2142AS3 | ||
| Stroke | 1300*2500*200mm | 1600*3100*200mm | 2100*3100*200mm | 2100*4200*200mm | ||
| Positioning accuracy | ±0.03mm | |||||
| Max. Idle speed | 45m/minute | |||||
| Support software | Type3/Artcam/Mastercam/UG | |||||
| Working voltage | AC380V-/220V | |||||
| Package dimensions | 3100*2100*2100mm | 3800*2100*2100mm | 3800*2200*2100mm | 3800*2200*2100mm | ||
| Weights | 1700kg | 2000kg | 2200kg | 2400kg | ||
Options
- The spindle with pneumatic tool changer and two/four heads is optional.
- The Z axis with a 250mm or 300m height is optional.
