MS2030BH12 Series CNC Router/CNC Mill
Request a Quote
The CNC router is designed for batch manufacturing of workpieces. It is capable of processing multiple workpieces simultaneously with the same specifications, thus doubling the processing efficiency. Users can request additional spindles to further improve processing efficiency according to their needs.
Materials Cut
Wood, plastic, acrylic, particle board, fiberboard, insulation board, plywood, polystyrene, polymethyl methacrylate
Applications

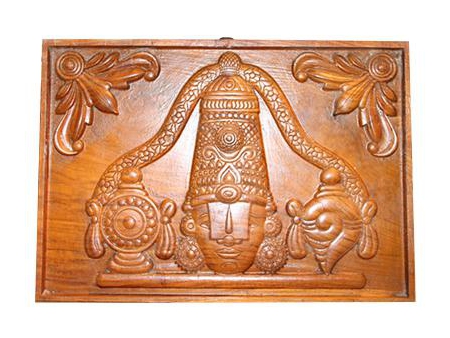

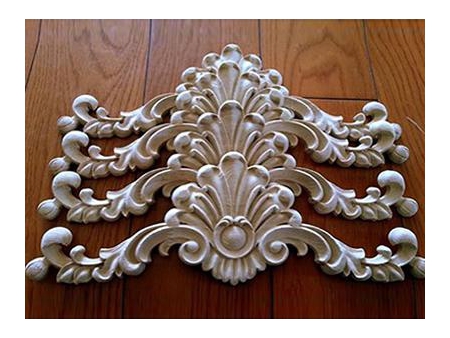

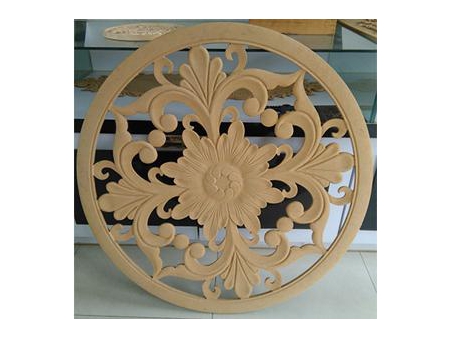

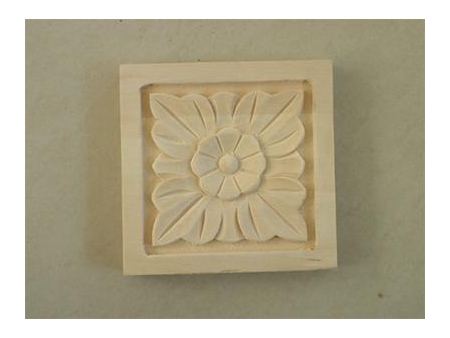

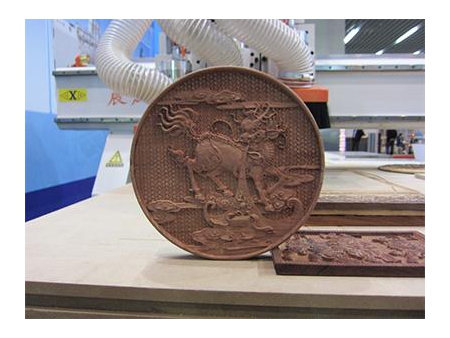

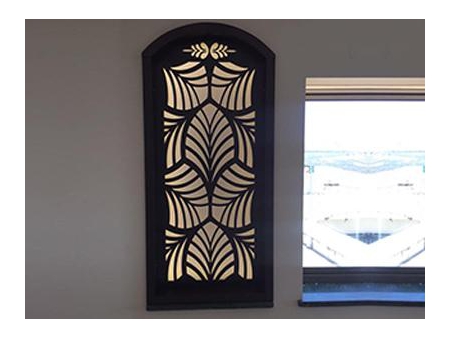

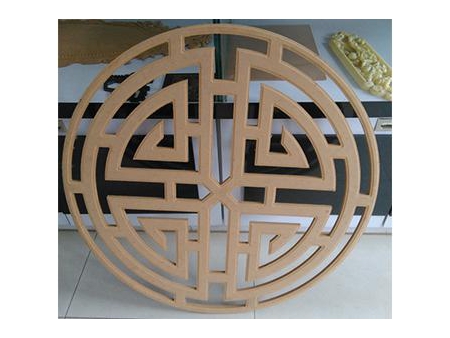

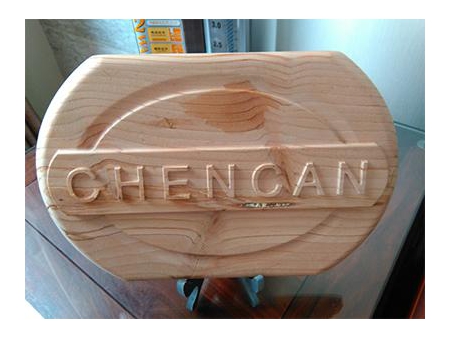

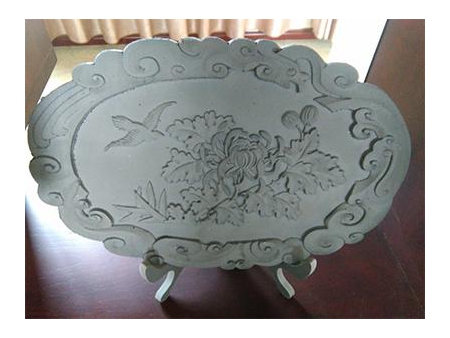

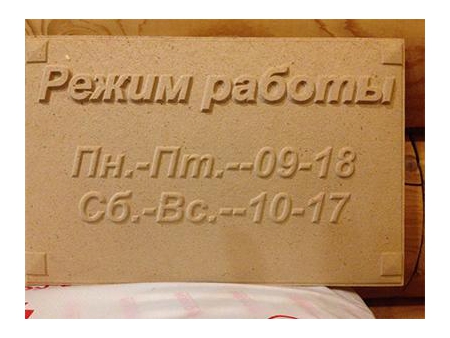

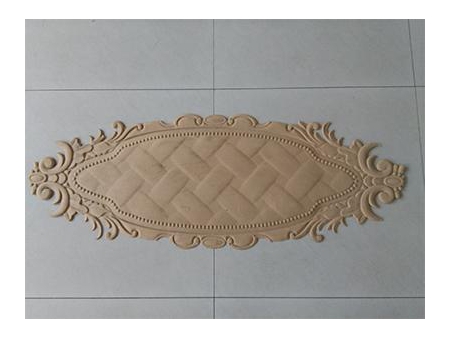

- Woodworking industry: cutting and carving the 3D surfaces and outlines on furniture, musical instruments, wood crafts, advertising signs, art murals, cabinet, doors and windows
- Mold industry: engraving a variety of molds including wood molds, letter punches, sand table models, motorboat models, foam molds
Features

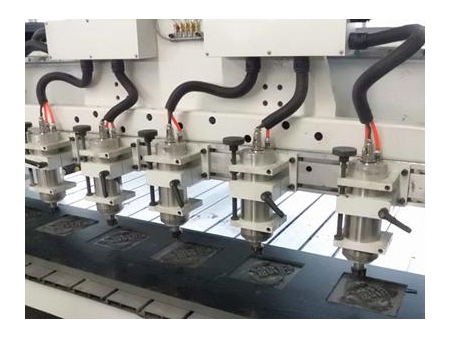

- The CNC router allows up to 12 spindles to work simultaneously, thus improving work efficiency. This product is CE certified and popular with our customers.

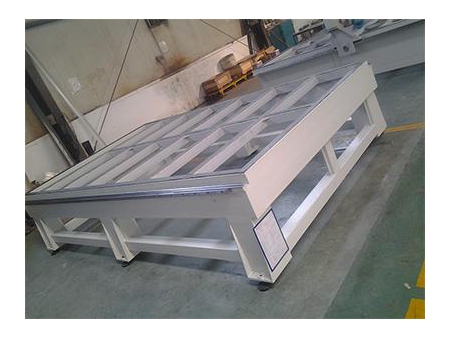

- The machine body is seamlessly welded using steel with a high rigidity.
- The Y axis is driven by two motors and two racks, ensuring the high performance.
Parameters
| Model | F5-MS2030BH12 |
| X-axis stroke | 2000mm |
| Y-axis stroke | 3000mm |
| Z-axis stroke | 300mm |
| Software | Artcam |
| Spindle power and speed | 2.2kW water cooled spindle, spindle speed:0-24000r/min（12 spindles） |
| Max. shank diameter | Ф12.7mm |
| Max. feed rate | X-axis: 10000mm/min, Y-axis:10000mm/min, Z-axis: 5000mm/min |
| Accuracy | ±0.1mm |
| Repeatability | X-axis:0.03mm, Y-axis:0.03mm, Z-axis:0.02mm |
| Processing speed | 0-15000mm/min |
| Working voltage | AC 380V/220C 3P |
| Weights | 2000kg |
| Package dimensions | 3700x2260x2100mm |
Optional Device
- The water cooled spindles can be replaced with air cooled spindles.
- Users can request added fixtures for the positioning cylinder.
- The number of spindles can be modified according to your requirements.
