Grooved 45° Elbow

Request a Quote

View All: http://grooved-fittings.com/5-4-grooved-45-elbow.html

Grooved pipe fittings

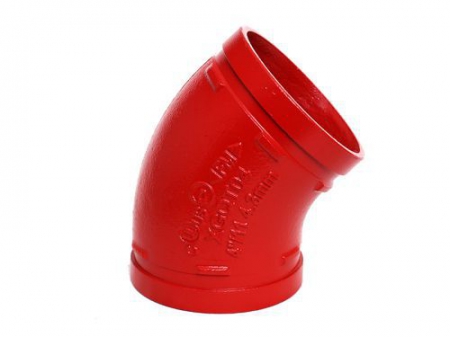

Grooved 45°elbow is an elbow fitting that is used for connecting two pipes with the same size to make the pipeline turn 45 degrees. It provides a change in flow direction and facilitates the adaptation of sizes or components.

Recommended Applications

Grooved 45° elbow is suitable for indoor heating systems, sewage treatment systems, oil and gas transmission pipeline systems, etc.

Key Specifications

Available sizes: 1 inch~12 inch |DN25~DN600
Working pressure: 300PSI/2.07MPa
Certificate: FM / UL /CE certified
Coating: epoxy /galvanized
Color: red/orange/white etc.

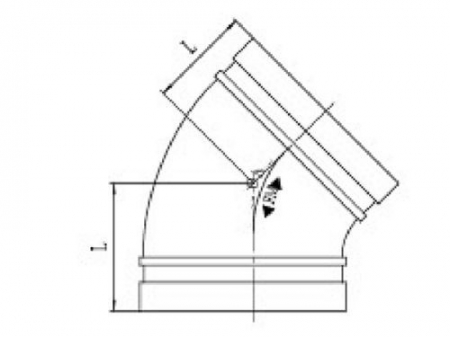

Specifications

Nominal Size	Pipe OD.	Dimensions
mm/in	mm/in	L mm/in
25 / 1	33.7 / 1.327	45 / 1.77
32 / 1 1/4	42.4 / 1.669	45 / 1.77
40 / 1 1/2	48.3 / 1.9	45 / 1.77
50 / 2	60.3 / 2.375	51 / 2.01
65 / 2 1/2	73 / 2.875	57 / 2.24
65 / 2 1/2	76.1 / 3	57 / 2.24
80 / 3	88.9 / 3.5	64 / 2.51
100 / 4	108 / 4.25	76 / 3
100 / 4	114.3 / 4.5	76 / 3
125 / 5	133 / 5.25	82.5 / 3.24
125 / 5	139.7 / 5.5	82.5 / 3.24
125 / 5	141.3 / 5.563	82.5 / 3.24
150 / 6	159 / 6.25	89 / 3.5
150 / 6	165.1 / 6.5	89 / 3.5
150 / 6	168.3 / 6.625	89 / 3.5
200 / 8	219.1 / 8.625	108 / 4.25
250 / 10	273 / 10.75	120.5 / 4.74
