Grooved 22.5° Elbow

Grooved 22.5° Elbow
Grooved 22.5° Elbow
Grooved 22.5° Elbow
Grooved 22.5° Elbow
Grooved 22.5° Elbow
Grooved 22.5° Elbow
Grooved 22.5° Elbow
Request a Quote

Grooved pipe fittings

Grooved 22.5°elbow is an elbow fitting that is used for connecting two pipes with the same size to make the pipeline turn 22.5 degrees. It provides a change in flow direction and facilitates the adaptation of sizes or components.

Recommended Applications

Grooved 22.5° elbow is suitable for indoor heating systems, sewage treatment systems, oil and gas transmission pipeline systems, etc.

Key Specifications
  • Available sizes: 1 inch~12 inch |DN25~DN600
  • Working pressure: 300PSI/2.07MPa
  • Certificate: FM / UL /CE certified
  • Coating: epoxy /galvanized
  • Color: red/orange/white etc.
Specifications

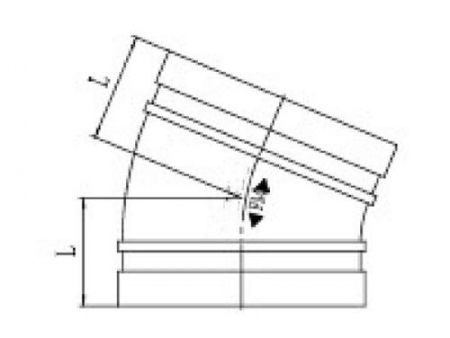

Nominal Size Pipe OD. Dimensions
mm/in mm/in L mm/in
50 / 2 60.3 / 2.375 48 / 1.89
65 / 2 1/2 73 / 2.875 51 / 2.01
65 / 2 1/2 76.1 / 3 51 / 2.01
80 / 3 88.9 / 3.5 57 / 2.24
100 / 4 108 / 4.25 73 / 2.87
100 / 4 114.3 / 4.5 70 / 2.76
125 / 5 133 / 5.25 73 / 2.87
125 / 5 139.7 / 5.5 73 / 2.87
150 / 6 165.1 / 6.5 89 / 3.5
150 / 6 168.3 / 6.625 79 / 3.11
200 / 8 219.1 / 8.625 98 / 3.85
