Grooved 11.25° Elbow

Request a Quote

View All: http://grooved-fittings.com/5-6-grooved-11-elbow.html

Grooved pipe fittings

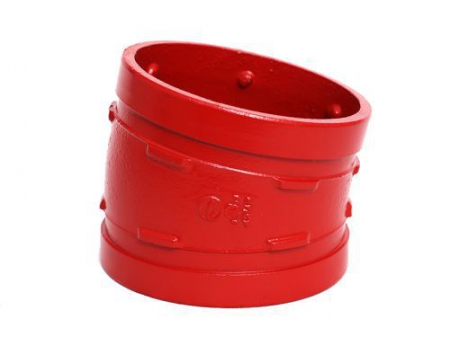

Grooved 11.25°elbow is a pipe fitting that is used to connect two pipes with the same size so as to make the pipeline turn 11.25 degrees for changing the flow direction. This grooved elbow facilitates the adaptation of sizes or components.

Recommended Applications

Grooved 11.25° elbow is suitable for indoor heating systems, sewage treatment systems, oil and gas transmission pipeline systems, etc.

Key Specifications

Available sizes: 1 inch~12 inch |DN25~DN600
Working pressure: 300PSI/2.07MPa
Certificate: FM / UL /CE certified
Coating: epoxy /galvanized
Color: red/orange/white etc.

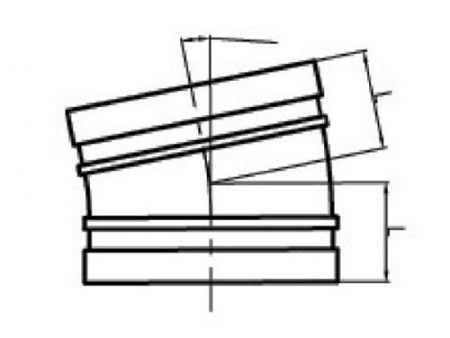

Specifications

Nominal Size	Pipe OD.	Dimensions
mm/in	mm/in	L mm/in
50 / 2	60.3 / 2.375	35 / 1.38
65 / 2 1/2	73 / 2.875	38 / 1.5
65 / 2 1/2	76.1 / 3.000	38 / 1.5
80 / 3	88.9 / 3.5	40 / 1.57
100 / 4	108 / 4.25	44 / 1.73
100 / 4	114.3 / 4.5	44 / 1.73
150 / 6	159 / 6.25	50 / 1.97
150 / 6	165.1 / 6.5	50 / 1.97
150 / 6	168.3 / 6.625	50 / 1.97
200 / 8	219.1 / 8.625	50 / 1.97
