Grooved 90° Reducing Elbow
Request a Quote
Grooved pipe fittings

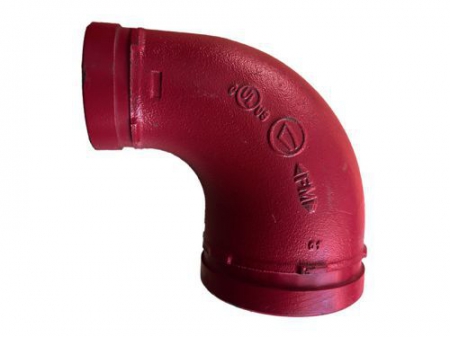

Grooved 90° reducing elbow is an elbow fitting for connecting two pipes of different sizes to make the pipeline turn 90 degrees. It provides a change in flow direction and facilitates the adaptation of sizes or components.
Recommended Applications
Grooved 90° reducing elbow is suitable for indoor heating systems, sewage treatment systems, oil and gas transmission pipeline systems, etc.
Key Specifications
- Available sizes: 1 1/4×1 inch~12×10 inch |DN32×25~DN300×250
- Working pressure: 300PSI/2.07MPa
- Certificate: FM / UL /CE certified
- Coating: epoxy /galvanized
- Color: red/orange/white etc.
Specifications

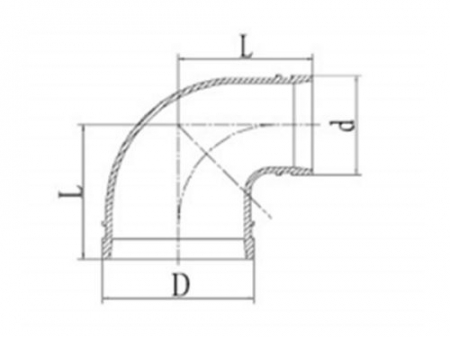

| Nominal Size | Pipe O.D. | Dimension |
| mm/in | mm/in | Lmm |
| 32*25 / 1 1/4*1 | 42.4*33.7 / 1.66*1.327 | 7O |
| 40*25 / 1 1/2*1 | 48.3*33.7 / 1.9*1.327 | 7O |
| 40*32 / 1 1/2*1 1/4 | 48.3*42.4 / 1.9*1.66 | 7O |
| 50*25 / 2*1 | 60.3*33.7 / 2.375*1.327 | 83 |
| 50*32 / 2*1 1/4 | 60.3*42.4 / 2.375*1.66 | 83 |
| 60*40 / 2 *1 1/2 | 60.3*48.3 / 2.375*1.9 | 83 |
| 65*25 / 2 1/2*1 | 76.1*Rc1 / 3*1.327 | 95 |
| 65*32 / 2 1/2*1 1/4 | 76.1*42.4 / 3*1.66 | 95 |
| 65*40 / 2 1/2*1 1/2 | 76.1*48.3 / 3*1.9 | 95 |
| 65*50 / 2 1/2*2 | 76.1*60.3 / 3*2.375 | 95 |
| 80*25 / 3*1 | 88.9*33.7 / 3.5*1.927 | 108 |
| 80*32 / 3*1 1/4 | 88.9*42.4 / B.5*1.68 | 108 |
| 80*40 / 3*1 1/2 | 88.9*48.3 / 3.5*1.9 | 108 |
| 80*50 / 3*2 | 88.9*60.3 / 3.5*2.375 | 108 |
| 80*65 / 3*2 1/2 | 88.9*76.1 / 3.5*3 | 108 |
| 100*65 / 4*2 1/2 | 114.3*76.1 / 4.5*3 | 127 |
| 100*80 / 4*3 | 114.3*88.9 / 4.5*3.5 | 127 |
| 150*100 / 6*4 | 165.1*114.3 / 6.5*4.5 | 165 |
| 150*100 / 6*4 | 168.3*114.3 / 6.625*4.5 | 165 |
