HBV-L10F-00 Dual-circuit Hydraulic Brake Valve, Modulating Brake Valve
Request a Quote
Applications
The hydraulic brake valve is used for construction equipment, material transfer vehicle, forestry and agricultural machinery, urban vehicles, etc.
Parameters
| Oil input pressure | 20MPa |
| Brake pressure | 12MPa |
| Oil return pressure | ≤0.5MPa |
| Viscosity range | 10-380 mm²/s |
| Oil temperature range | -20℃--100℃ |
| Oil cleanliness | No less than Level GB/T 14039-2002 19/16 or Level NAS 1638 10 |
| Mass | 4.5Kg |

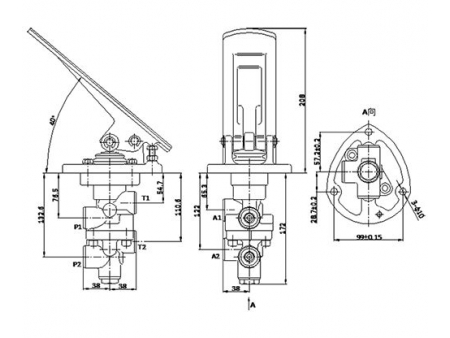

Outside view
Professional supplier engaged in the R&D, manufacturing, and sales of various hydraulic components
Annual production capacity of 250,000 sets of hydraulic components
Over 30 series and over 200 varieties and specifications to meet the specific needs of our clients
