Precision Vertical Translation Stage
Request a Quote
Manual vertical stage
Our company offers a series of manual vertical translation stages. The travel distances range from 5 to 400mm, with load capacities spanning from 1 to 200kg, catering to a wide range of customer production and experimental needs. Additionally, the main body of the manual vertical translation stage is constructed from aluminum alloy material, with a surface treated with black anodized oxidation for increased hardness and corrosion resistance.

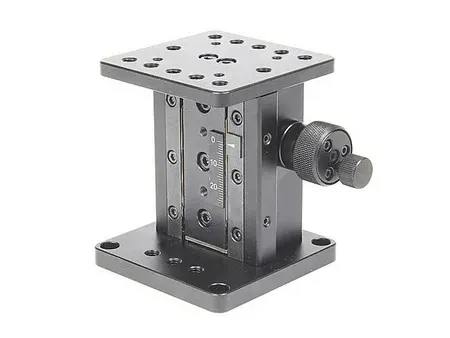

7SVM0160 Vertical Translation Stage (Travel: 60 mm)
Features
- Designed for heavy-load vertical positioning, this stage offers smooth, stable motion without the need for incremental adjustments.
- A precision-ground lead screw and scissor-lift support mechanism ensure controlled movement with high stability and minimal effort.
- Dual guide rails combined with a rigid five-axis design provide exceptional structural integrity and precise vertical translation.
- Multiple mounting points on both top and bottom surfaces allow for flexible installation based on system requirements.
- A built-in handwheel locking system keeps the stage securely in place, enhancing safety and reliability during operation.
Specifications
| Model | 7SVM0160 |
| Travel | 60mm |
| Resolution | 0.01mm |
| Table size | 80mm×120mm |
| Load | 20kg |
| Weight | 1.15kg |

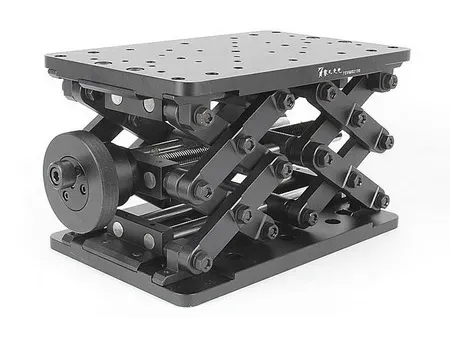

7SVM02120 Vertical Translation Stage (Travel: 120 mm)
Features
- Built for heavy-load vertical positioning, this stage provides long travel range while maintaining smooth and stable motion.
- A scissor-lift support system, reinforced with six guide rails, enhances stability and precision, even under demanding loads.
- Equipped with a precision-ground lead screw featuring opposite-threaded sections, the stage ensures highly controlled movement with minimal resistance.
- For added security, the stage features a handwheel locking system, allowing users to lock the position effortlessly and prevent unintended shifts during operation.
Specifications
| Model | 7SVM02120 |
| Travel | 120mm |
| Resolution | 0.01mm |
| Table size | 140mm×220mm |
| Load | 25kg |
| Weight | 3.5kg |

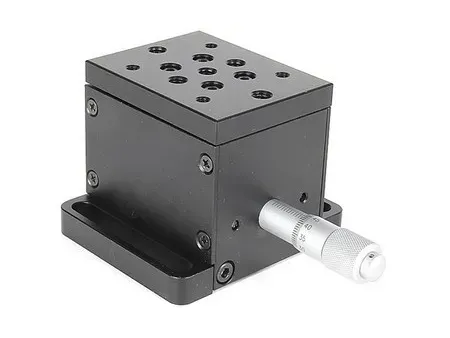

7SVM0313 Vertical Translation Stage (Travel: 13 mm)
Features
- Incorporates a precision linear bearing guide rail, providing smooth motion and consistent performance for vertical positioning.
- A dual-rail over-constrained design enhances stability, accuracy, and overall movement precision, making it suitable for high-precision applications.
- Direct micrometer-driven motion allows for quantitative readings and fine positional adjustments with ease.
- Multiple standard connection holes on the platform enable seamless integration with components such as 7MP series support rods and other mounting systems.
Specifications
| Model | 7SVM0313 |
| Travel | 13mm |
| Accuracy | 0.005mm |
| Minimum graduation | 0.01mm |
| Resolution | 0.002mm |
| Table size | 44mm×62mm |
| Load | 2kg |
| Weight | 0.6kg |

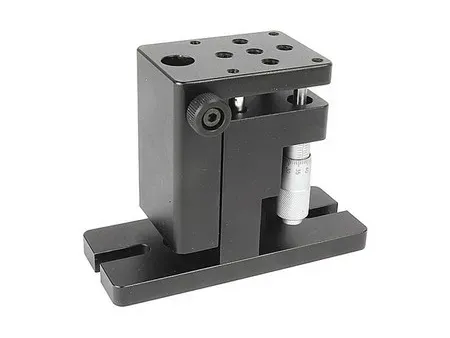

7SVM0413 Vertical Translation Stage (Travel: 13 mm)
Features
- Equipped with a precision linear bearing guide rail, ensuring smooth and reliable vertical translation with minimal resistance.
- A dual-rail over-constrained design enhances motion stability, precision, and overall structural integrity, making it ideal for high-accuracy applications.
- Micrometer-driven adjustment enables fine-tuned positioning with clear quantitative readings, allowing for precise control.
- Multiple standard mounting holes on the platform provide versatile connectivity, making it easy to integrate with 7MP series support rods and other compatible components.
Specifications
| Model | 7SVM0413 |
| Travel | 13mm |
| Accuracy | 0.005mm |
| Minimum graduation | 0.01mm |
| Resolution | 0.002mm |
| Table size | 44mm×62mm |
| Load | 2kg |
| Weight | 0.6kg |

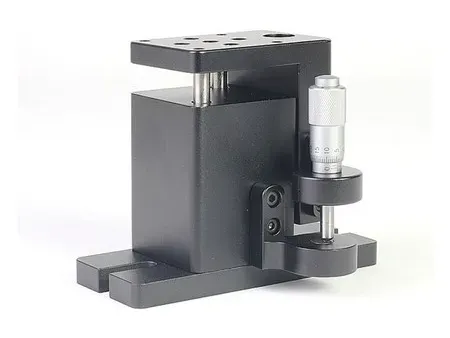

7SVM0505 Vertical Translation Stage (Travel: 5 mm)
Features
- Incorporates a wedge structure to enhance resolution and improving minimum graduation for precise adjustments.
- Designed with a precision-ground V-shaped steel rail and ball system, ensuring high accuracy, smooth movement, and strong load capacity.
- The micrometer-driven motion provides direct quantitative readings, allowing for fine-tuned positioning with ease.
Specifications
| Model | 7SVM0505 |
| Travel | 5mm |
| Accuracy | 0.003mm |
| Minimum graduation | 0.05mm |
| Resolution | 0.001mm |
| Table size | 64mm×50mm |
| Load | 10kg |
| Weight | 0.6kg |

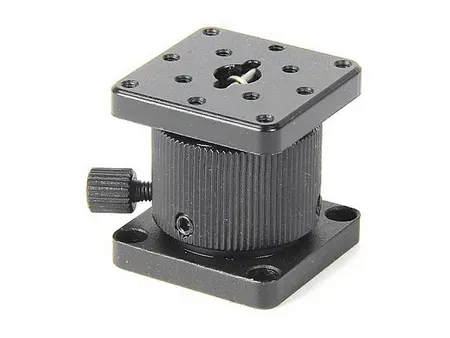

7SVM0605 Vertical Translation Stage (Travel: 5 mm)
Features
- Designed for compact setups, this ultra-small stage optimizes workspace efficiency without sacrificing precision.
- A precision screw drive system controls vertical movement with high accuracy and smooth operation.
- Equipped with a spring reset mechanism, it eliminates backlash, ensuring consistent and stable positioning.
Specifications
| Model | 7SVM0605 |
| Travel | 5mm |
| Resolution | 0.01mm |
| Table size | 25mm×25mm |
| Load | 1kg |
| Weight | 0.05kg |

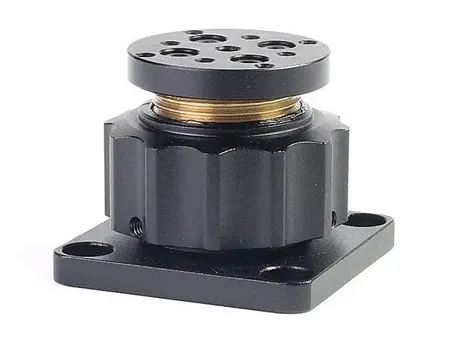

7SVM0610 Vertical Translation Stage (Travel: 10 mm)
Features
- Ultra-compact design minimizes space usage, making it ideal for tight installation environments.
- A precision screw drive ensures smooth and controlled vertical movement with high accuracy.
- Spring reset mechanism actively reduces backlash, providing consistent and reliable positioning.
Specifications
| Model | 7SVM0610 |
| Travel | 10mm |
| Resolution | 0.01mm |
| Table size | φ33mm |
| Load | 1kg |
| Weight | 0.2kg |
7SVM0725 Precision Vertical Translation Stage (Travel: 25 mm)
Features
- Equipped with cross roller guide systems to provide smooth movement, high positioning accuracy, and excellent load-bearing capacity.
- A helical gear and rack mechanism ensures stable, controlled motion while handling heavy loads efficiently.
- Its integrated vernier scale allows for precise and measurable vertical adjustments.
- A locking screw secures the stage in position, enhancing accuracy, safety, and operational reliability.
Specifications
| Model | 7SVM0725 |
| Travel | 25mm |
| Resolution | 0.01mm |
| Table size | 70mm×70mm |
| Load | 6kg |
| Weight | 0.6kg |

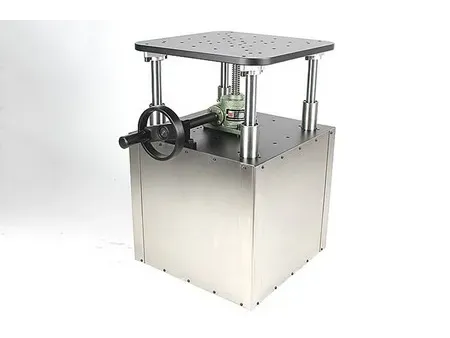

7SVM09 Series Vertical Translation Stages (Travel: 50–400 mm)
Features
- Features a well-balanced design that prevents uneven loading by keeping the driving force at the center of the horizontal platform.
- Equipped with a high-performance worm gear reducer for fast vertical movement while supporting heavy loads with ease.
- The self-locking trapezoidal screw rod provides secure positioning without the need for additional locking mechanisms.
- Smooth and stable motion is ensured by the precision linear bearing guide rail, minimizing friction and enhancing durability.
Specifications
| Model | ||||||
| Travel | 50mm | 100mm | 150mm | 200mm | 300mm | 400mm |
| High range A | 305-355mm | 355-455mm | 405-555mm | 465-665mm | 608-908mm | 708-1108mm |
| Screw lead | 4mm | 6mm | ||||
| Transmission ratio | 11:1 | 6:1 | ||||
| Resolution | 0.01mm | 0.02mm | ||||
| Table size | 300mm×300mm | 500mm×500mm | ||||
| Load | 100kg | 200kg | ||||
| Weight | 25.9kg | 26.6kg | 27.3kg | 28kg | 134kg | 137kg |

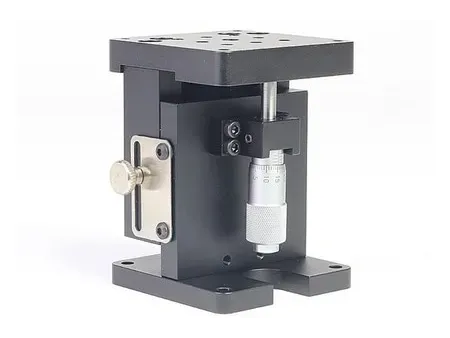

7SVM1013 Precision Vertical Translation Stage (Travel: 13 mm)
Specifications
| Model | 7SVM1013 |
| Travel | 13mm |
| Accuracy | 0.002mm |
| Minimum graduation | 0.01mm |
| Resolution | 0.002mm |
| Table size | 60mm×60mm |
| Load | 4kg |
| Weight | 0.47kg |
