Phosphor Bronze Wire Mesh Manufacturer

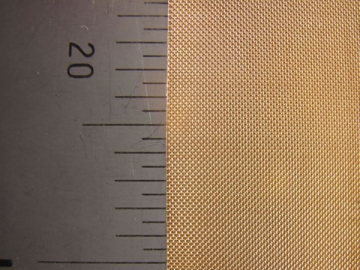

Phosphor Bronze Wire Mesh

Request a Quote

View All: http://wiremeshguardrail.com

Bronze Wire Mesh / Phosphor Bronze Wire / Phosphor Bronze Wire Cloth

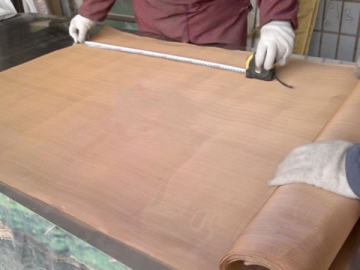

Shenzhou HongLi produces phosphor bronze wire mesh from 1 mesh to 400 mesh. It is also called phosphor bronze wire cloth. We produce rolls with a diameter from 0.2m to 3m and roll length from10m to 200m.

Material
Phosphor bronze wire is a copper alloy, with 2% to 8% Sn, approximately 0.1% to 0.4% phosphorous, the balance is copper. Red copper wire is a kind of industrial copper with a melting point of 1083℃.

Characteristics
Phosphor bronze wire is corrosion resistant, high strength, flexible and magnetic. The cloth is also noted for its outstanding electrical conductivity and thermal conductivity.

Uses
Usually used for sieving and filtering in pharmaceutical and food applications as well as in porcelain and glass processing.

Weave Method
Plain weave and twill weave.

Specification list for phosphor bronze wire mesh

Mesh/Inch	Wire Dia mm d	Mesh Opening mm w	Opening Area A %	Weight Kgs/m2	Mesh/Inch	Wire Dia mm d	Mesh Opening mm w	Opening Area A %	Weight Kgs/m2
4	1.20	5.15	65%	3.25	60	0.15	0.273	41%	0.76
5	1.00	4.08	65%	2.82	70	0.13	0.232	41%	0.66
6	0.71	3.52	69%	1.70	80	0.12	0.197	39%	0.65
8	0.70	2.47	61%	2.21	90	0.11	0.172	37%	0.61
10	0.50	2.04	65%	1.41	100	0.10	0.154	37%	0.56
12	0.45	1.66	62%	1.37	120X108	0.09	0.132	35%	0.52
14	0.40	1.41	61%	1.26	120	0.08	0.132	39%	0.43
16	0.30	1.28	66%	0.81	140	0.06	0.121	44%	0.28
18	0.25	1.16	68%	0.63	150	0.06	0.109	42%	0.30
20	0.25	1.02	65%	0.70	160	0.06	0.098	38%	0.32
22	0.38	0.77	44%	1.79	180	0.05	0.091	42%	0.25
30	0.20	0.65	58%	0.67	200	0.05	0.077	37%	0.28
32	0.25	0.54	46%	1.13	250	0.04	0.061	36%	0.22
40	0.23	0.40	40%	1.19	300	0.03	0.054	41%	0.15
50	0.17	0.33	44%	0.81	325	0.03	0.048	37%	0.16
60x50	0.19	0.26	34%	1.12	350	0.03	0.042	34%	0.17
60x50	0.17	0.28	39%	0.89	400	0.025	0.038	36%	0.14
(Roll width):0.60m-2.9m
