Manual rotation stage

The manual rotary stage features a precision rotary shaft system design, providing high accuracy and stability. The platform can rotate 360° and is equipped with coarse and fine adjustment, as well as worm gear adjustments. The platform diameter ranges from 29 to 100mm, and hollow-structured rotary stages are available for light transmission or connecting to other products.

Below are the types of precision rotary stage we have produced.

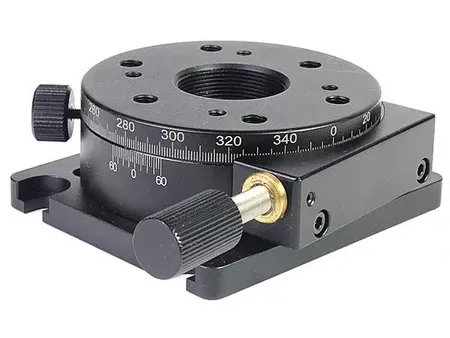

7SRM156 Precision Rotary Stage
  • Rotary table diameter: Ø56mm
  • Coarse adjustment range: 360°
  • Fine adjustment range: ±3°
  • Minimum graduation: 2°
  • Minimum reading: 0.2°
  • Load: 2kg
  • Weight: 0.15kg
7SRM173 Precision Rotary Stage
  • Rotary table diameter: Ø73mm
  • Coarse adjustment range: 360°
  • Fine adjustment range: ±2.5°
  • Minimum graduation: 1°
  • Minimum reading: 5°
  • Load: 5kg
  • Weight: 0.35kg

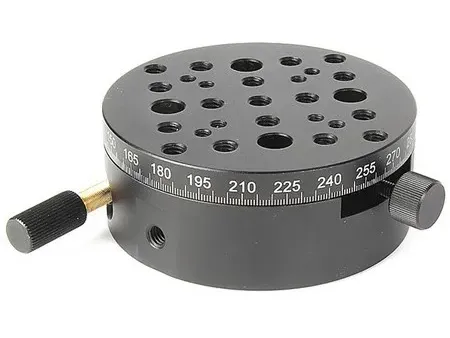

7SRM182/7SRM182L Precision Rotary Stage
  • Rotary table diameter: Ø82mm
  • Coarse adjustment range: 360°
  • Fine adjustment range: ±10°
  • Minimum graduation: 1°
  • Minimum reading: 2°
  • Load: 5kg
  • Weight: 0.5kg

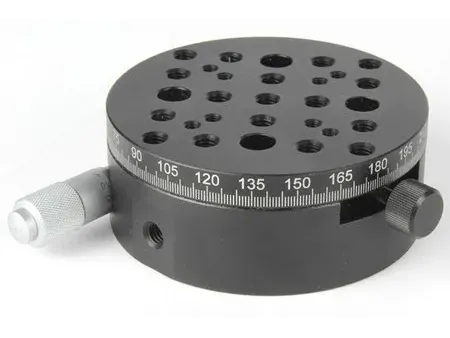

7SRM282/7SRM282L Precision Rotary Stage
  • Rotary table diameter: Ø82mm
  • Coarse adjustment range: 360°
  • Fine adjustment range: ±10°
  • Minimum graduation: 1°
  • Minimum reading: 2°
  • Minimum reading of the micrometer: 0.01mm
  • Load: 5kg
  • Weight: 0.5kg

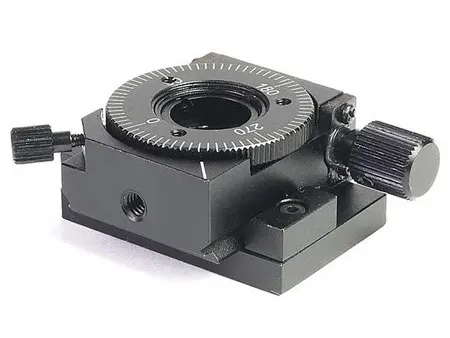

7SRM329 Precision Rotary Stage
  • Rotary table diameter: Ø29mm
  • Adjustment range: 360°
  • Minimum graduation: 5°
  • Sensitivity: 0.5°
  • Central hole: M14x1, for 0.5 inch lens
  • Weight: 0.15kg

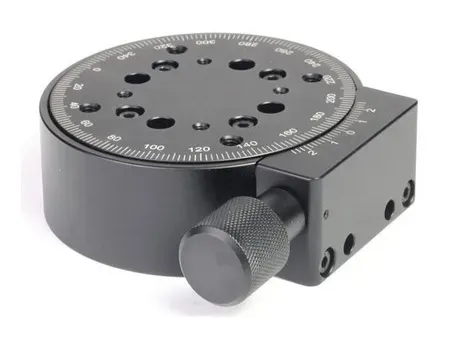

7SRM3100 Precision Rotary Stage
  • Rotary table diameter: Ø100mm
  • Range of adjustment: 360°
  • Minimum graduation: 2°
  • Minimum reading: 0.2°
  • Sensitivity: 1°
  • Load: 15kg
  • Weight: 0.5kg

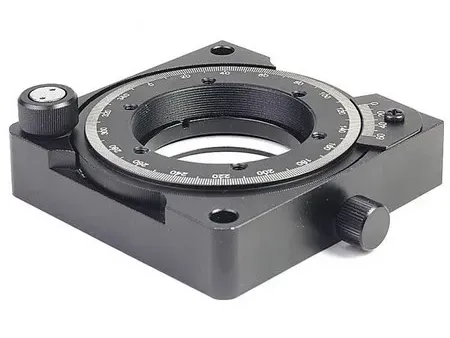

7SRM490 Precision Rotary Stage
  • Rotary table diameter: Ø90mm
  • Adjustment range: 360°
  • Minimum graduation: 1°
  • Minimum reading: 2°
  • Weight: 0.35kg
