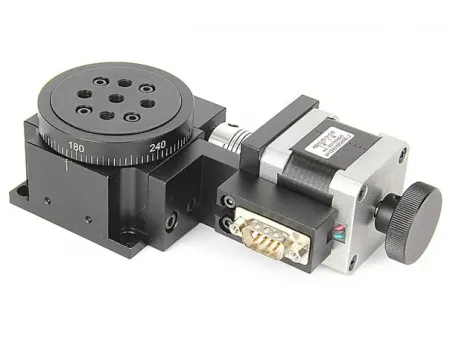

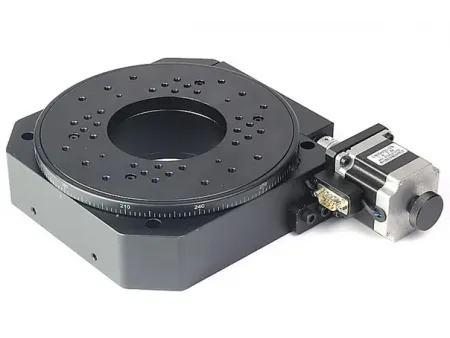

Motorized Precision Rotary Stage
Request a Quote
7SRA1200
Features
- Equipped with a stepper motor and a standard DB9 plug, compatible with 7SC series motion controllers for smooth and precise automated control.
- Built with precision-machined bearing steel for enhanced accuracy, high load capacity, and long-lasting durability.
- Features a precision-ground worm and worm gear, enabling reversible and smooth rotation with minimal backlash.
- Designed with a clearance elimination structure, ensuring stable performance and long-term reliability.
- Perfect alignment of tolerance holes with the rotation axis for easy and accurate positioning.
- Includes a high-quality elastic coupling that connects the motor and worm, providing synchronized movement with low noise and vibration.
Specifications
| Model | |
| Table diameter | Ø200mm |
| Transmission ratio | 180:1 |
| Repeatability | 0.005° |
| Standard motor | 57 stepper motor (1.8°) |
| Maximum static torque | 1.2N·m |
| Rated working current | 2.8A |
| Maximum speed (2 subdivision) | 25/s |
| Resolution (8 subdivision) | 0.00125 |
| Diameter of central hole | Ø90 0.025mm |
| Standard zero position | Yes |
| Central load | 60kg |
| Weight | 7.7kg |
