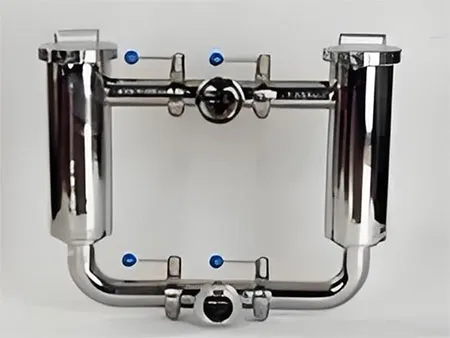

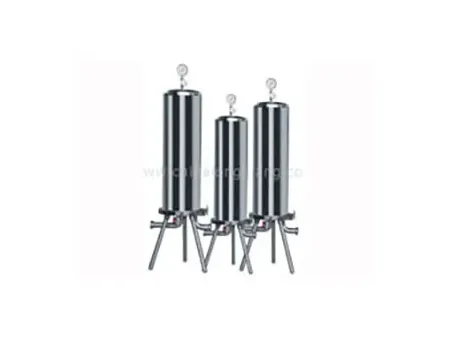

This tube filter is a compact, high-efficiency filtration solution designed to remove small solid particles from pipeline liquids, protecting compressors, pumps, instruments, and other equipment. Its advanced design ensures optimal performance and reliability across various industrial applications.
The filter undergoes a multi-stage polishing process, achieving a contact surface roughness of Ra 0.4 µm, meeting near-sanitary grade standards. Its fully mirror-polished finish enhances both cleanliness and operational efficiency.

Applications

Ideal for filtering particles from various liquids, including edible oils, beverages, alcoholic drinks, and food-grade liquids. Also suitable for filtering chemicals and protecting downstream equipment in chemical processing plants.

Operating Conditions

Max. operating temperature: 150℃

Materials

Filter body: Stainless steel (304, 316L)
Exhaust/liquid valves: Stainless steel (304, 316L)
Seals and gaskets: Made from EPDM, PTFE, fluororubber, and silicone

Connection

Installing filter housing: Uses quick connect fittings
Inlet/outlet: 2’’/2.5’’/3’’ tri-clamp fittings

Surface Finish

Finish type: Mechanical polishing, electrolytic polishing, sandblasting
Polishing precision: Inner wall 0.4 µm, outer wall 0.6 µm

Technical Parameters
Inlet/outlet 2’’ Inlet/outlet 2.5’’ Inlet/outlet 3’’
Cartridge size (mm) 46 48 56 58 46 48 56 58 56 58
Total height (mm) 621 833 621 833 621 833 621 833 621 833
Distance from inlet to center (mm) 89 108 127
Shell diameter (mm) Ø101.6 Ø129 Ø101.6 Ø129 Ø129
Height from inlet N1 to filter cover (mm) 100 100 100
Diameter of filter element (mm) Ø76 Ø100 Ø76 Ø100 Ø100
Length of filter element (mm) 554 766 554 766 554 766 554 766 554 766
