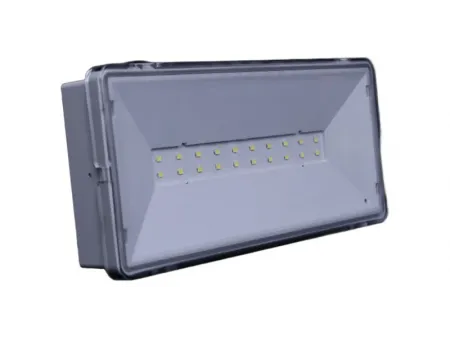

LE517 Waterproof LED Emergency Exit Sign Bulkhead (20 SMD2835 LEDs)

Request a Quote

Website: http://ft-emergencylight.com/5-7-waterproof-led-emergency-exit-sign-bulkhead.html

Waterproof LED emergency bulkhead that offers flexible use as standard illumination or exit signage.

The slim design blends easily into corridors, stairwells, or utility areas where discreet fixtures are preferred.

Fitted with 20 SMD2835 LEDs delivering 200 lumens of bright light to keep escape routes visible.

AC/DC mode ensures the unit switches seamlessly to backup power during outages.

Runs up to 3 hours on a 3.2V 2000mAh LiFePO4 battery and recharges fully in under 24 hours.

The ABS base and polycarbonate diffuser help protect the LEDs from moisture and impact.

Includes optional accessories to convert the fixture into a side-lit exit sign for clear directional guidance.

Color temperature between 6000–7000K provides crisp, neutral-white illumination.

Rated IP65, making it suitable for damp or partially exposed locations.

Ordering Information

Model	LE517
Main Specifications	2835-0.2W×20pcs LEDs, 3.2V 2000mAh LiFePO4 battery

Product Size	235×105×36.5mm
MOQ	1000pcs
Lead Time	35 days
Sample Delivery Time	3~10 days
Remarks	Maintained/non-maintained
Packing Information
Packing	Color box
Carton Size (L×W×H)	25×22.5×20.5cm
Carton CBM	0.012m³
Quantity per Carton	10pcs
Gross Weight	7.3kgs/ctn
Net Weight	6.6kgs/ctn
Container Loading Quantity	1×20'	1×40'	1×40' HQ
	22917pcs	47917pcs	55833pcs
