LE507L-50 LED Emergency Bulkhead (50 SMD2835 LEDs)

Request a Quote

Website: http://ft-emergencylight.com/5-4-led-emergency-bulkhead.html

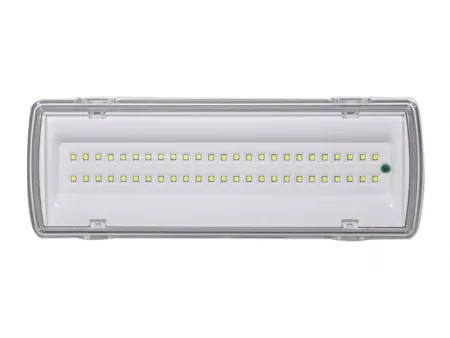

Slim LED emergency bulkhead designed for installations where space is limited and a discreet profile is preferred.
It uses an ABS base and a clear polycarbonate diffuser that help protect the fixture and maintain even light distribution.
Fitted with 50 SMD2835 LEDs, it produces up to 400 lumens of output for reliable illumination.
Runs in DC mode with 4W power consumption and 9.5V output voltage.
Includes two 3.7V 1.5Ah lithium batteries that supply up to 3 hours of emergency lighting when power is lost.
The charging circuit supports a maximum current of 110mA, while the discharge current reaches 500mA.
A full recharge cycle takes around 24 hours.
The front cover can display adhesive labels to mark exits or indicate escape routes clearly.
IP65 rating ensures the unit can be installed in damp or dusty areas without compromising performance.
Optional embedded box available for recessed installation.
A decorative ceiling cover is also available, providing a more refined appearance for ceiling-mounted installations.
Optional acrylic directional signs can be selected to serve as clear and effective safety indicators.

Specifications

Model	LE507L50
Main Specifications	50pcs×LEDs (SMD2835), 4W, 2×3.7V 1.5Ah lithium battery (18650)

Product Size	27×10×5.4cm
MOQ	1000pcs
Lead Time	35 days
Sample Delivery Time	3~10 days
Packing Information
Packing		White box
Carton Size (L×W×H)		38.5×33.2×38.5cm
Carton CBM		0.049m³
Quantity per Carton		12pcs
Gross Weight		8.4kgs/ctn
Net Weight		7.4kgs
Container Loading Quantity		1×20'	1×40'	1×40' HQ
		6735pcs	14082pcs	16408pcs
