Manual tilt stage
Our company offers single-axis and dual-axis tilt platforms. The tilt platform features a disc spring or tension spring reset structure, ensuring stability and strong anti-vibration capabilities. Additionally, it includes standard mounting holes for easy integration with other positioning stages to form multidimensional adjustment platforms.
Below are the types of tilt platforms we have produced.

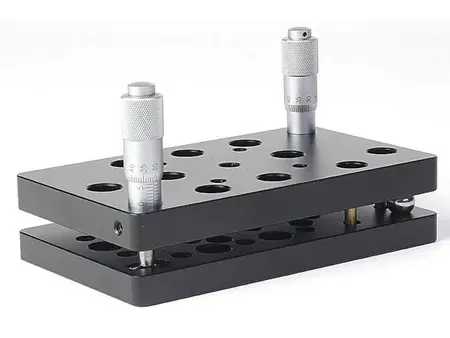

- Table size: 80mmx120mmdiscitem
- Adjustment range: ±3°discitem
- Minimum graduation: 0.01mmdiscitem
- Load: 5kgdiscitem
- Weight: 0.5kgdiscitem
![](public/propic/4216/b_5-9-tilt-platform_02b.webp)

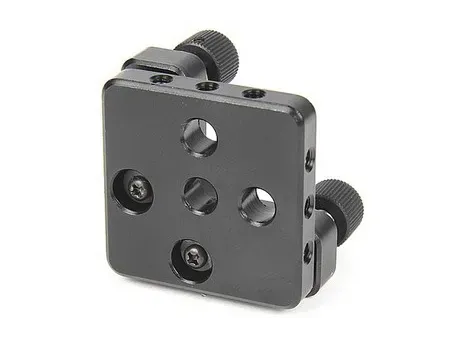

- Table size: 75mmx125mm
- Adjustment range: ±5°
- Minimum graduation: 0.01mm
- Load: 6kg
- Weight: 0.5kg
![](public/propic/4216/b_5-9-tilt-platform_03b.webp)

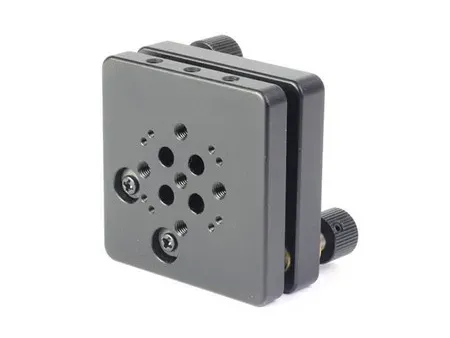

- Adjustment range: ±5°
- Load: 2kg
- Weight: 0.1kg
![](public/propic/4216/b_5-9-tilt-platform_04b.webp)

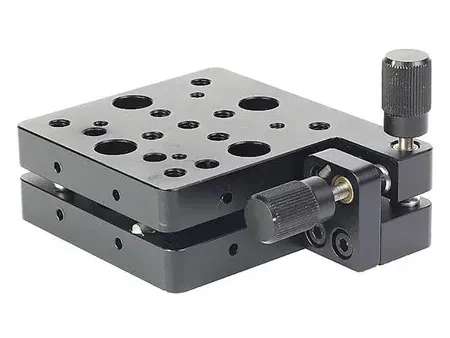

- Adjustment range: ±5°
- Load: 2kg
- Weight: 0.1kg
![](public/propic/4216/b_5-9-tilt-platform_05b.webp)

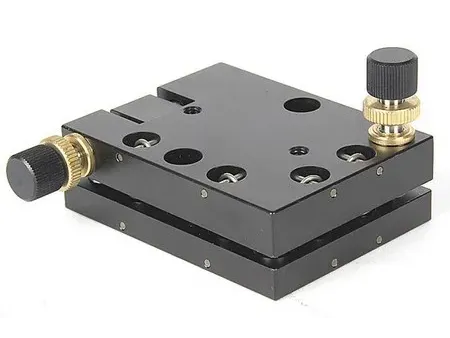

- Pitching angle: 2.5°
- Rotary angle: 2.5°
- Load: 6kg
- Weight: 0.3kg
![](public/propic/4216/b_5-9-tilt-platform_06b.webp)
- Pitching angle: 2°
- Rotary angle: 2°
- Load: 2kg
- Weight: 0.3kg
