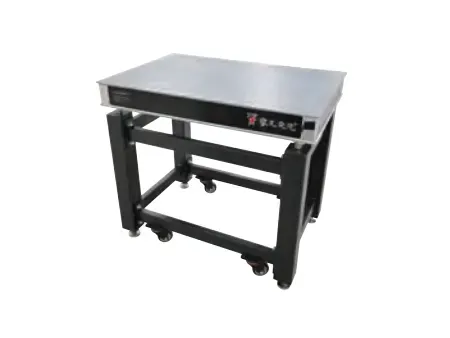

Optical Isolation Platform
Request a Quote
Features
- Made of ferromagnetic stainless steel with special processing to ensure high flatness and prevent glare.
- Magnetic surface allows devices to be fixed at any position, compatible with the 7MBM series magnetic bases.
- Available with no holes or custom hole patterns, making it a cost-effective and specialized solution for industrial applications.
- Features a three-layer structure with a honeycomb core that increases rigidity, reduces weight, and enhances vibration resistance.
Specifications
- Thickness: 50mm
- Flatness: 0.1mm/(600mm×600mm)
| Model | Size of table (mm) | Weight (kg) |
| 300×300 | 10 | |
| 300×600 | 20 | |
| 300×900 | 30 | |
| 300×1200 | 40 | |
| 600×600 | 40 | |
| 600×900 | 60 | |
| 600×1200 | 80 | |
| 900X900 | 90 | |
| 900×1200 | 120 | |
| 900×1500 | 150 | |
| 1000×1200 | 135 |
