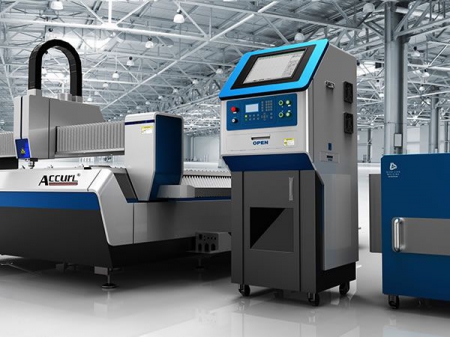

500W Fiber Laser CNC Stainless Steel Cutting Machine
Request a Quote
Incredibly fast and flexible, the ACCURL Genius series fiber laser cutting machine is ideal for ultra-high speed cutting of thin sheet materials. This equipment has the ability to cut a wide array of ferrous and non-ferrous metals while maintaining low cost operation.
Features
- User friendly Cypcut Windows CAD/CAM CNC control unit.
- Unique features:
-Maximum simultaneous positioning speed: 160m/min.
-Acceleration speed: 14 m/ s2 (1.5G).
-Precision: - 0.05 mm.
-Energy efficiency: greatly reduced power consumption.
-IPG Resonator. Power output from 500w - RayTools cutter cutting head with power output up to 2kw.
- Fully enclosed to ensure maximum operator protection.
- Effective high to low pressure gas exchange system.
- Capacitative Sensor, high pressure cutting head.
- Automatic mechanized nesting power output control function.
- Automatic time and unit cost calculation function.
- External network connection
- Smoke extraction (included in series models).
- Collection of work pieces and trimmings.
- Dual proportional valve control system for different gas pressures and special system for high
Specifications
| Laser power | 500W Fiber Laser Cutting |
| Laser source | America/Russia IPG fiber laser resonator |
| Processing surface (L × W) | 3000mm x 1500mm |
| CNC control | Shanghai FISCUT CypCut |
| Laser head | Switzerland Raytools |
| Power supply | AC380V±5% 50/60Hz (3 phase) |
| Total electric power | 10kW |
| Position accuracy X, Y and Z axle | ±0.03mm |
| Repeat position accuracy X, Y and Z axle | ±0.02mm |
| Maximum position speed of X and Y axle | 72m/min |
| Acceleration | 1g |
| Max load of working table | 600kg |
| Drawing programming mode | AI, DWG, PLT, DXF format import directly |
| Machine weight | 5T |
| *** Note: As products are constantly updated, please contact us for latest specifications. *** | |
Cutting Thickness Limit
| Material | Cutting Thickness Limit |
| Carbon steel | 6mm |
| Stainless steel | 3mm |
| Aluminum | 1mm |
| Brass | 1mm |
| Copper | 0.5mm |
Main Parts
| Article Name | Remark |
| Fiber laser resonator | IPG (America/Russia)/500W |
| Servo motor and driver | DELTA (Taiwan) |
| Ball screw rod | HIWIN (Taiwan) |
| Liner guide | HIWIN (Taiwan) |
| Gear rack | YYC (Taiwan) |
| Laser head | RAYTOOLS (Switzerland) |
| Chiller | HAN LI (China) |
| Controller | FISCUT (China) |
| Gas Proportional valve | SMC (Japan) |
| Reduction gear box | APEX (Taiwan) |
Detailed Pictures

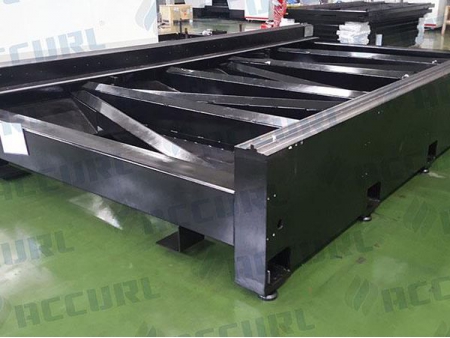

- Framework by heat treatment

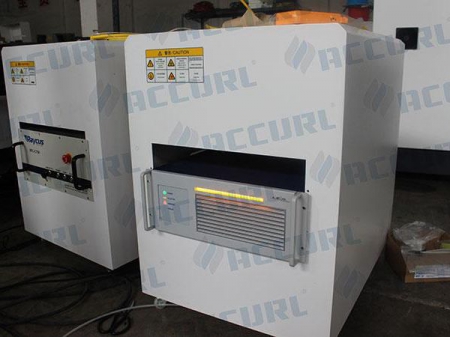

- IPG 500w Fiber Laser Power

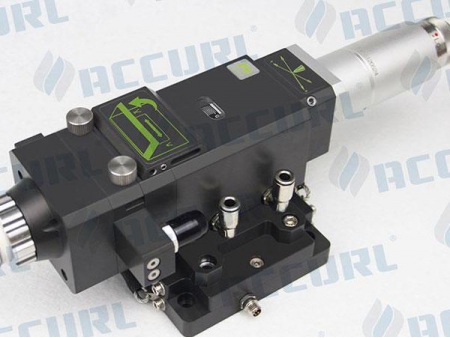

- Laser Cutting head

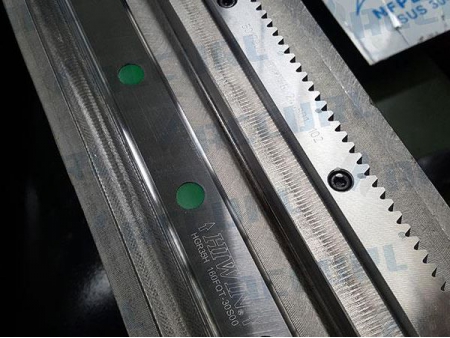

- Linear guide and Rack

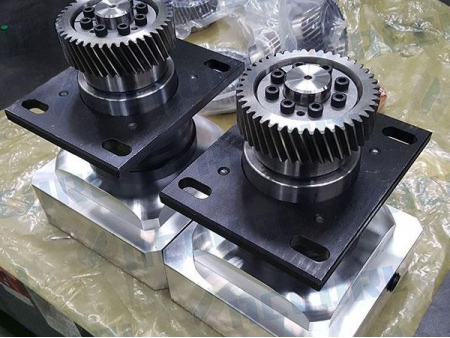

- Shimpo reduction gears from Japan
